Optical Rail, Miniature, 75 mm, 19.1 mm Width, M4 Thread and M6 CLR

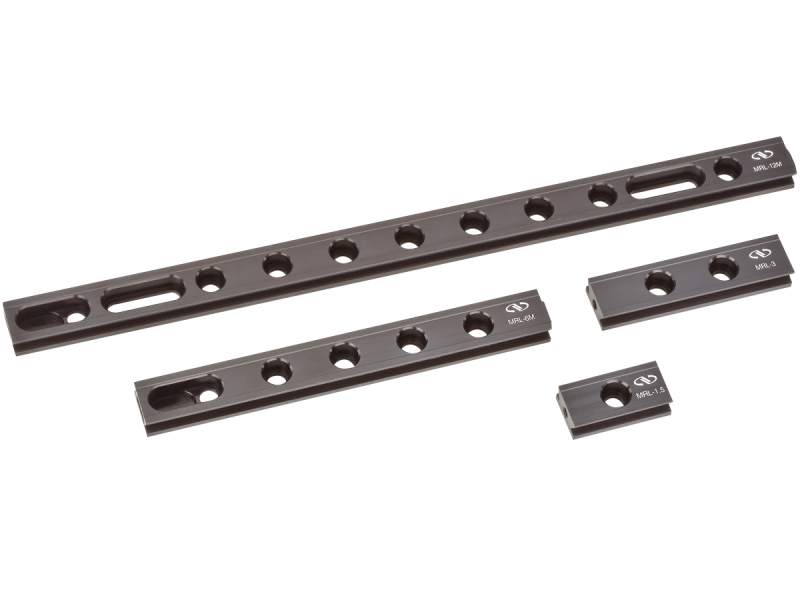

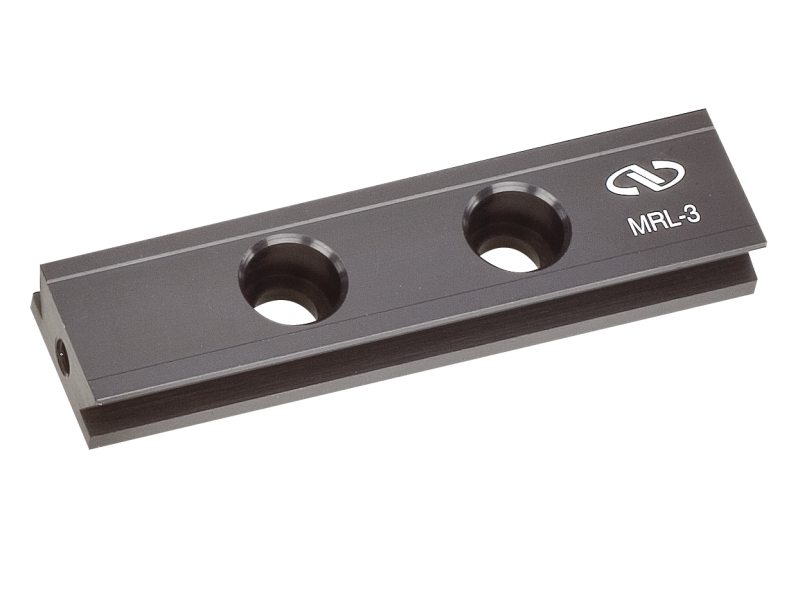

The M-MRL-3 Mini Optical Rail provides smooth carrier translation and wobble free clamp down over a 75 mm length. M6 clearance holes with M4 thread are provided. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.

Specifications

Technical Specs

Type
Optical Rail
Rail Length
75 mm
Height
9.5 mm

Width
19.1 mm
Material
Aluminum

Type
Optical Rail
Rail Length
75 mm
Height
9.5 mm

Width
19.1 mm
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

MRL-3ATR-25perc-S(78.1 kB, PDF)

Other

M-MRL-3 RoHS Certificate(278.4 kB, PDF)
M-MRL-3_RoHS2021.pdf(682.6 kB, PDF)
