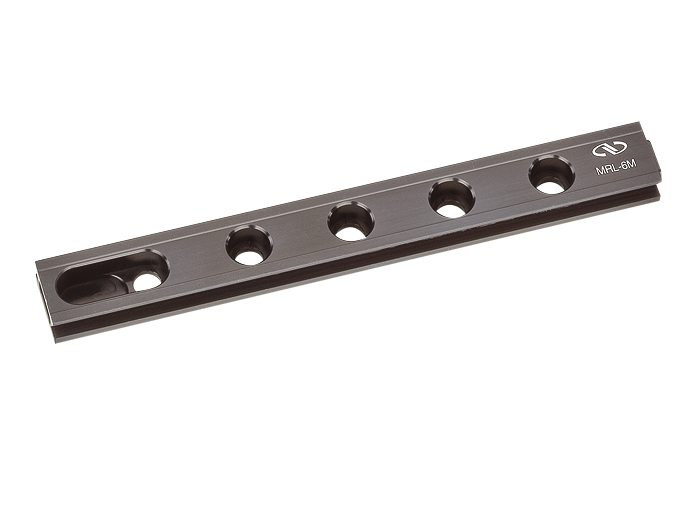

Optical Rail, Miniature, 150 mm, 19.1 mm Width, M4 Thread and M6 CLR
Optical Rail, Miniature, 150 mm, 19.1 mm Width, M4 Thread and M6 CLR
Model: M-MRL-6M
Product Series Overview

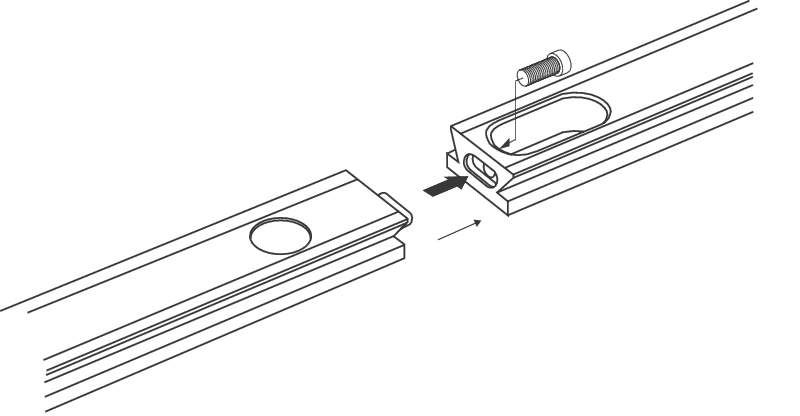

19 mm Miniature Optical Rails & CarriersThe M-MRL-6M Mini Optical Rail provides smooth carrier translation and wobble free clamp down over a 150 mm length. M6 clearance holes with M4 thread are provided. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.
Resources & Downloads
3D Product Models
2D Product Drawings
MRL-6M-ART-S(91.6 kB, PDF)
Other
M-MRL-6M RoHS Certificate(278.6 kB, PDF) M-MRL-6M_RoHS2021.pdf(684.1 kB, PDF)
