Carriage Lock, UMR5.25

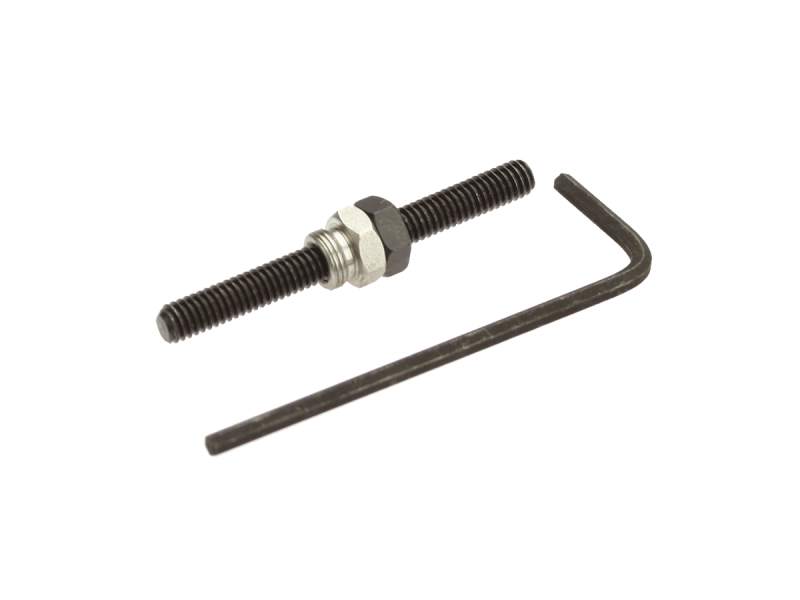

The CL6-25 carriage locking kit includes a screw that mounts in the (M-)UMR5.25 stage body opposite the micrometer. Two carriage locks are required for fixed positioning.

Resources & Downloads

3D Product Models

Other

CL6-25 RoHS Certificate(278.8 kB, PDF)
CL6-25_RoHS2021.pdf(284.1 kB, PDF)
