Carriage Lock, UMR8.4

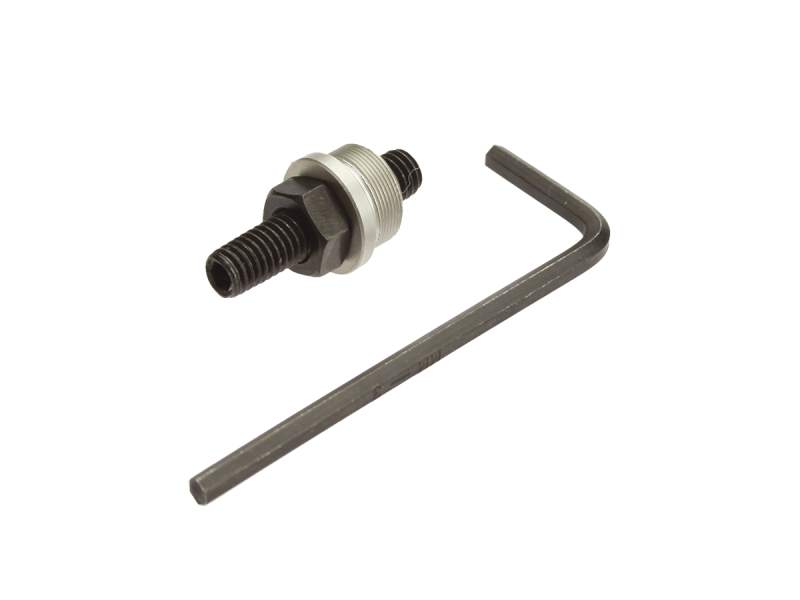

The CL12-4 carriage locking kit includes a screw that mounts in the (M-)UMR8.4 stage body opposite the micrometer. Two carriage locks are required for fixed positioning.

Resources & Downloads

3D Product Models

Other

CL12-4 RoHS Certificate(278.8 kB, PDF)
CL12-4_RoHS2021.pdf(283.5 kB, PDF)
