Carriage Lock, UMR5.16

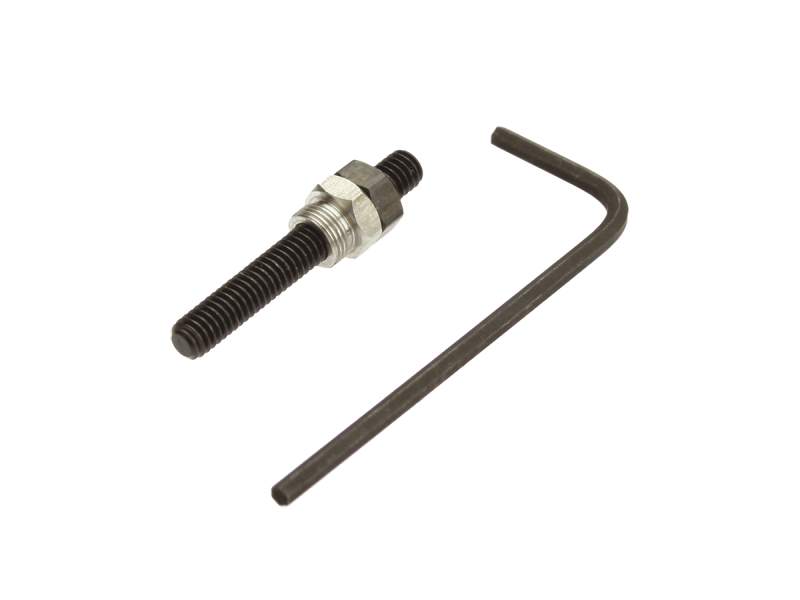

The CL6-16 carriage locking kit includes a screw that mounts in the (M-)UMR5.16 stage body opposite the micrometer. Two carriage locks are required for fixed positioning.
