Differential Micrometer Head, 16.1 mm Coarse, 0.1 mm Fine, 6.6 lb. Load

DM Thread-Mount Differential Micrometer Heads

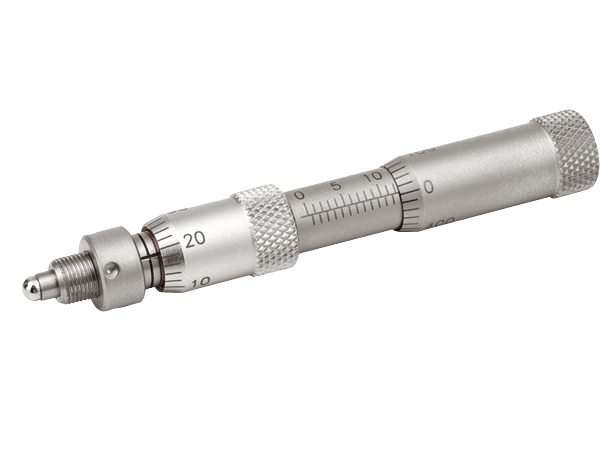

The DM11-16 Differential Micrometer delivers ultra-fine, sub-micron positioning capabilities and coarse travel up to 16 mm in a single instrument. In most cases, DM Series Differential Micrometers can directly replace BM Series Micrometers and BHC Locking Drives to provide approximately ten times better positioning sensitivity. DM Series Micrometers are the standard choice of actuator on UMR and MVN Series Stages and on SL Series Mirror/Beamsplitter Mounts. In essence, the DM Differential Micrometer is a standard micrometer with a 0.05 mm high-resolution micrometer built around it. Coarse positioning, provided by the control knob at the end of the micrometer, enables rapid translation with a sensitivity of 1 μm. Then, by using the fine adjustment knob closest to the positioner, the position can be further optimized with a sensitivity of 0.1 μm over a limited travel range. The fine adjustment knob is graduated to permit direct reading of position in 2 μm increments. 6.6 lb. Load Capacity.

Specifications

Technical Specs

Type
Differential Micrometer
Travel Range
16.0 mm
Drive Type
Knob
Graduations
20 µm
Axial Load Capacity
30 N
Fine Travel
0.10 mm

Graduations, Fine
2 µm
Sensitivity
0.1 µm
Mounting Threads
M6x0.5

Type
Differential Micrometer
Travel Range
16.0 mm
Drive Type
Knob
Graduations
20 µm
Axial Load Capacity
30 N
Fine Travel
0.10 mm

Graduations, Fine
2 µm
Sensitivity
0.1 µm
Mounting Threads
M6x0.5

Resources & Downloads

Drawings And Cad

DM Series-S(117.8 kB, PDF)

Other

DM11-16 RoHS Certificate(281.9 kB, PDF)
