Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts

Laser Diode Optical Mount Adaptors

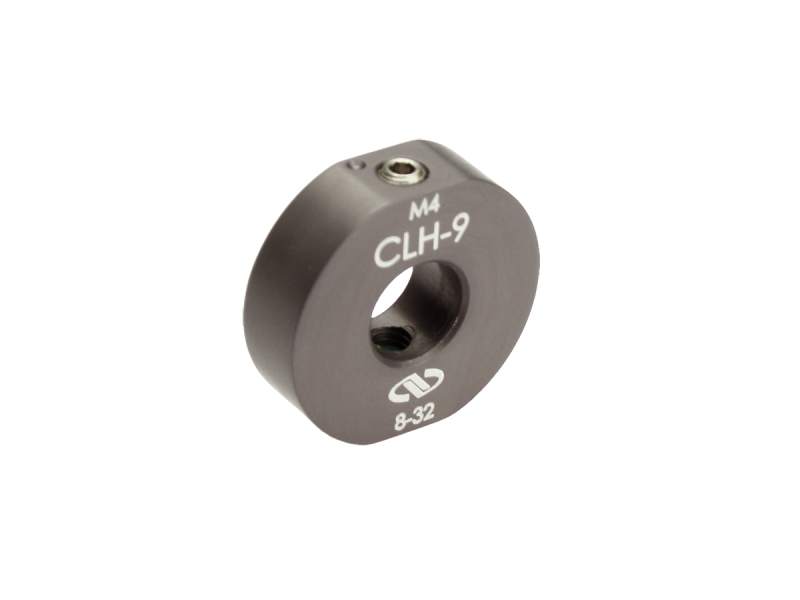

The CLH-9 Optical Mount Adapter allows 9 mm diameter collimators to be mounted into most 1 inch (25.4 mm) diameter mirror mounts.

Specifications

Technical Specs

Type
Collimator Holder

Outside Diameter
25.4 mm

Type
Collimator Holder

Outside Diameter
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

CLH DWG.pdf(265 kB, PDF)

Other

CLH-9_RoHS2021.pdf(681.1 kB, PDF)
