Motorized Goniometer, Upper, Direct Encoder Feedback, CONEX™ Controller
Motorized Goniometer, Upper, Direct Encoder Feedback, CONEX™ Controller
Model: CONEX-AG-GON-UP
Product Series Overview

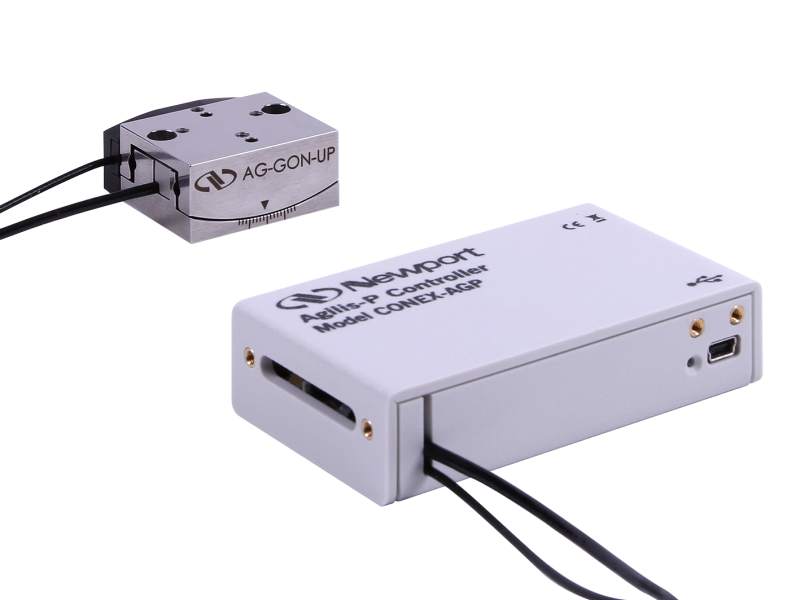

Piezo Goniometer With CONEX ControllerThe CONEX-AG-GON-UP is a piezo motor driven goniometric cradle with direct encoder feedback and integrated closed-loop piezo motor controller/driver. The compact CONEX-AG-GON-UP has its rotation axis above the mounting platform for easy access and provides very compact tip-tilt platform when stacked with CONEX-AG-GON-LP. It uses piezo motor with a built-in encoder enabling high position repeatability and resolution.
Comes with a USB cable. For OEM applications, an optional retainer to secure the USB and power cables is available. In addition, RS232 and RS485 communication are available at the board level.
Resources & Downloads
3D Product Models
2D Product Drawings
CONEX-AG-GON-UP(100.3 kB, PDF) CONEX-AGP - Applet Manual.pdf(1 MB, PDF) CONEX-AGP - Command Interface Manual.pdf(555 kB, PDF) CONEX-AGP - Controller Documentation.pdf(1.6 MB, PDF) CONEX-AGP - Introduction, Safety & Service.pdf(1.1 MB, PDF) CONEX-AG-GON-xP Data Sheet(427.4 kB, PDF) CONEX-AGP-2.0.0(16 MB, ZIP) CONEX Datasheet(4.2 MB, PDF) MKS GUI’s and Microsoft.NET Framework 3.5 SP1(1.4 MB, PDF) Driving Multiple Piezo Motors on a Single Workstation(2.7 MB, PDF)
