Piezo Goniometric Cradles with CONEX-AGP Controller
Piezo Goniometric Cradles with CONEX-AGP Controller

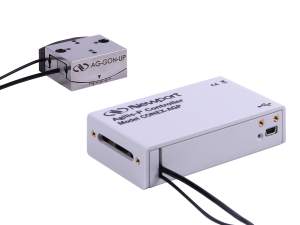

The CONEX-AG-GON series is a piezo motor driven goniometric cradle integrated with a closed-loop piezo motor controller/driver. It uses a piezo motor with a built-in encoder enabling high position repeatability.
- Piezo goniometer with direct read encoder
- Integrated with ultra-compact CONEX-CC controller and driver
- Highly repeatable angular motion and high sensitivity (MIM)
- Fast USB communication for Plug-and-Play See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-AG-GON-LP Piezo Goniometer With CONEX ControllerMotorized Goniometer, Lower, Direct Encoder Feedback, CONEX™ Controller | |||||
 | CONEX-AG-GON-UP Piezo Goniometer With CONEX ControllerMotorized Goniometer, Upper, Direct Encoder Feedback, CONEX™ Controller |
Specifications
Features

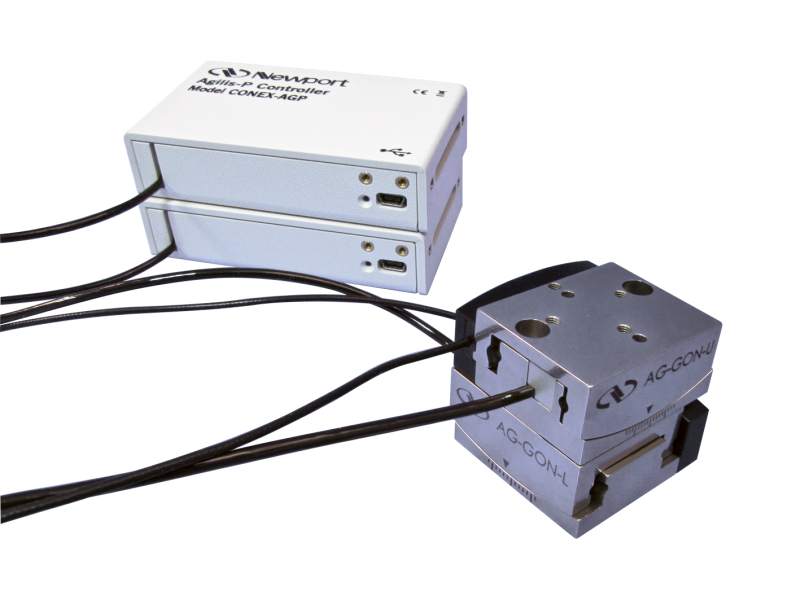

Build Tip-Tilt Platforms
Complete Your Conex System
CONEX-PS is an essential need to supply power to your Conex devices and it is purchased separately.
We also offer the CONEX-BP base plate which is used to securely mount up to 6 CONEX-AGP motion controllers to save you space and bring you convenience.

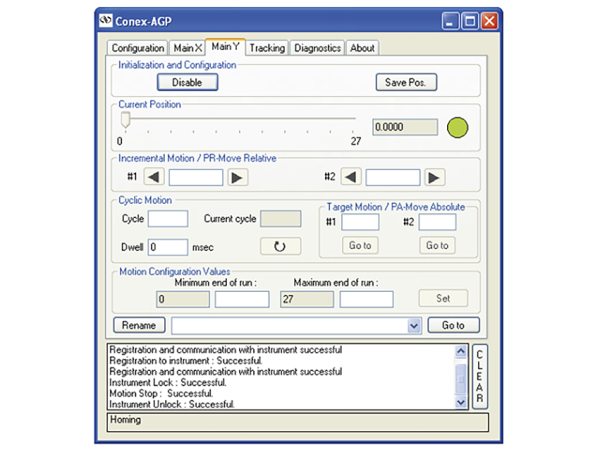

Simple and Intuitive CONEX™ Software
The controller comes with the familiar CONEX GUI, simple and intuitive to use and conveniently accessible via USB, which also supplies power to the controller. For out-of-the box control, the CONEX-AGP controller is preconfigured and delivered with an AG-GON-UP(LP) goniometric cradle. The CONEX-AGP closed-loop algorithm is a simplified version of the typical DC servo loop algorithm, and combined with the direct read encoder. For stability in-position, the user can adjust the deadband parameter that stops dithering when the stage is within a set position tolerance.
USB Communication with PC
Communication with the CONEX controller and PC is achieved via the integrated USB interface, providing a fast, ubiquitous communication protocol. Additionally, the USB also supplies power to the controller. For OEMs or security-sensitive applications, RS-232 and RS-485 are embedded onto the controller.
Simple Programming with Extensive Language Options
Resources
Manuals
CONEX-AGP - Applet Manual.pdf(1 MB, PDF) CONEX-AGP - Command Interface Manual.pdf(555 kB, PDF) CONEX-AGP - Controller Documentation.pdf(1.6 MB, PDF) CONEX-AGP - Introduction, Safety & Service.pdf(1.1 MB, PDF)
Literature
CONEX-AG-GON-xP Data Sheet(427.4 kB, PDF) CONEX Datasheet(4.2 MB, PDF)
