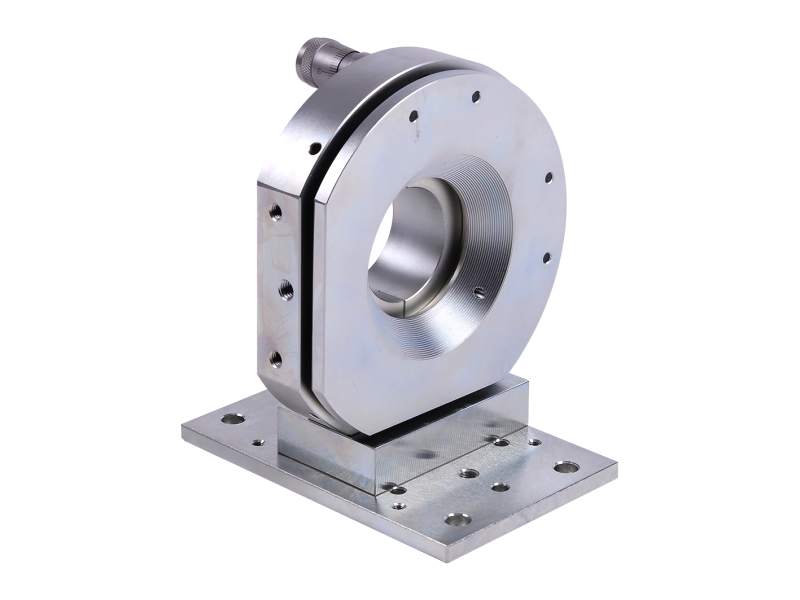

Two Axis Mount, Precision Adjustable, CONEX-LDS Series

The CONEX-LDS-SL Two Axis Precision Adjustable Mount provides precision θ_xθ_y rotational adjustment for the CONEX-LDS. The CONEX-LDS electronic autocollimator performs high-resolution angular measurements for alignment, quality assurance, and metrology applications. For translation and rotational adjustments for CONEX-LDS mounts, see the CONEX-LDS-SLXY.

Specifications

Technical Specs

Type
Adjustable Two Axis Mount
Use
CONEX-LDS Autocollimator
Angular Range
±2°

MTBF
20,000 h
Compliance
RoHS 3, CE

Type
Adjustable Two Axis Mount
Use
CONEX-LDS Autocollimator
Angular Range
±2°

MTBF
20,000 h
Compliance
RoHS 3, CE

Resources & Downloads

3D Product Models

2D Product Drawings

Electronic Autocollimator for Metrology and Industrial Applications(1.7 MB, PDF)
CONEX-LDS Data Sheet.pdf(0, PDF)
