CONEX-LDS Electronic Autocollimator

The CONEX-LDS autocollimator performs high-resolution, non-contact angular measurements for alignment, quality assurance and metrology applications. The controller is integrated in the body of the autocollimator making it ideal for systems integration or as a portable metrology tool. The CONEX-LDS is used in the highest precision applications performing high resolution angular measurements at over distances of up to 5 meters.

High sensitivity with angular measurements down to 0.01 µrad
Fast acquisition at 2 kHz
Simple to setup using the alignment window
Easy to use software
Safe operation (Class II Laser Device)
Every unit individually tested and delivered with calibration and certification report

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CONEX-LDS CONEX-LDS Electronic AutocollimatorAutocollimator, Optical Head with Integrated Controller	UNIVERSAL			$22,814

Features

Sensitive Angular Measurements

The resolution of the CONEX-LDS is actually 0.003 µrad. Including the sensor noise, the sensitivity stays at 0.01 µrad, which is a very excellent value for angular measurement.

Fast Data Acquisition

The CONEX^™ controller works in junction with the internal position sensor detector to provide high speed data acquisition rates up to 2 kHz. This feature is ideal for vibration measurements, structural drift, or even metrology applications like wobble measurements of bearings.

Convenient Alignment Window

Newport's CONEX-LDS supplies an intuitive, built-in alignment window used for coarse alignment of the optics. This allows the user to manually and quickly setup the autocollimator.

Certification and Quick Verification of Calibration

A calibration report is provided with each individual unit, certifying its performance. CONEX-LDS-VER is available to easily verify the unit's calibration on a regular basis. If the unit is out of calibration, it can be returned to the factory for re-calibration.

Ideal Tool for Many Applications

The CONEX-LDS is ideal for:

pitch and yaw measurements
rotation stage accuracy measurements
rotation axis orthogonality measurements
surface flatness measurements
settling time and stage damping analysis
vibration analysis
wobble control
beam set-up and alignment
machine alignments

Easy-to-Use GUI with Out-of-the-box Control

For out-of-the box control, the CONEX controller is preconfigured and delivered with the sensor. To start using the CONEX-LDS, the device simply requires plugging in the power supply, connecting the USB communication, and starting the free GUI. Once the GUI has been started, the layout is intuitive and straightforward. From the front panel, the user can access graphical displays of gathered data.

Built-in Controller

A very compact controller is integrated into the autocollimator head of the CONEX-LDS. This allows for easy setup, smaller footprint, lightweight design, and easy connections directly to the PC and power.

Accessories

Description	Compatibility	Price
CONEX-LDS-AOC Analog Output Cable, 5m, CONEX-LDS Autocollimator	UNIVERSAL	$514
CONEX-LDS-CABLE20 RS422 Cable, CONEX-LDS Autocollimator, 20 m	UNIVERSAL	$710
CONEX-LDS-CABLE5 RS422 Cable, CONEX-LDS Autocollimator, 5 m	UNIVERSAL	$498

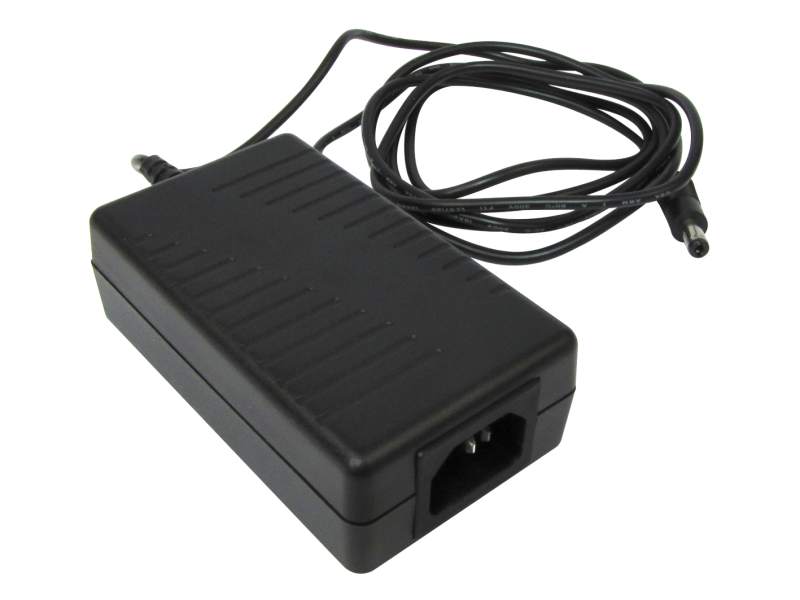

CONEX-LDS-PS Autoranging Power Supply, CONEX-LDS Autocollimator, 90-264 VAC	UNIVERSAL	$116
CONEX-LDS-SL Two Axis Mount, Precision Adjustable, CONEX-LDS Series	UNIVERSAL	$1,477
CONEX-LDS-SLXY Four Axis Mount, Precision Adjustable, CONEX-LDS Series	UNIVERSAL	$3,526
CONEX-LDS-VER Calibration Verification Kit, CONEX-LDS Autocollimator	UNIVERSAL	$5,255
CONEX-USB-RS422 USB Interface Converter, CONEX-LDS	UNIVERSAL	$453
ETH-RS422-EU Ethernet Interface Converter, CONEX-LDS	UNIVERSAL	$666
