Cylindrical Laser Mount, 1.73 in. (44 mm), BM micrometers

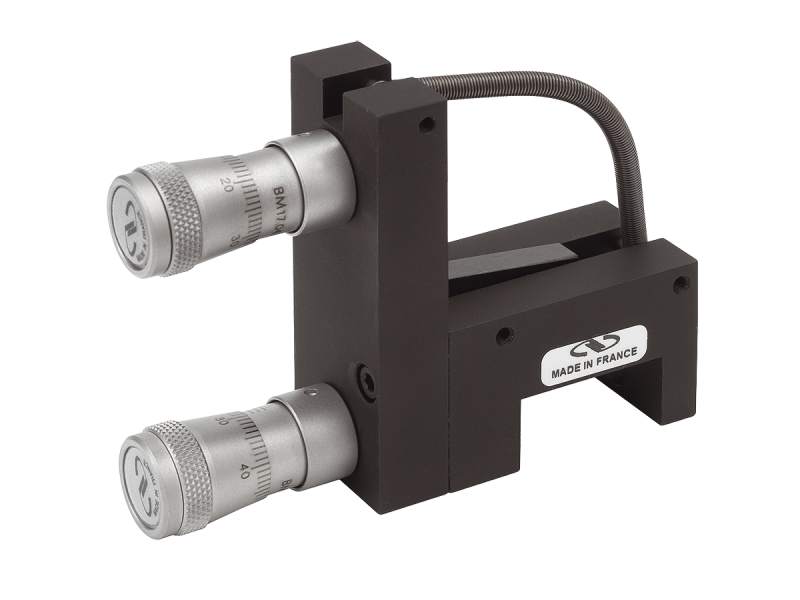

The CT26.44BM Cylindrical Laser Mount is used to accurately position cylindrical lasers up to 1.73 inch (44 mm) in diameter on the X26 rail system. Two mounts are recommended for each tube to enable 0.16 inch (4 mm) of stable XY and tip/tilt adjustment. These mounts are very useful for laboratory applications and remain highly rigid and stable for a long period of time. The laser is held firmly against a reference block by a spring that wraps around the tube. The beam height is 40 mm, common with the X26 rail system. Lateral sensitivity is on the order of the BM actuator sensitivity.

Specifications

Technical Specs

Type
Cylindrical Laser Mount
Diameter
44 mm
Adjustments
XY
Adjustment Type
Micrometer

Travel Range Y
4 mm
Use
X26 Optical Rail
Included Actuators
BM17.04N

Type
Cylindrical Laser Mount
Diameter
44 mm
Adjustments
XY
Adjustment Type
Micrometer

Travel Range Y
4 mm
Use
X26 Optical Rail
Included Actuators
BM17.04N

Resources & Downloads

3D Product Models

2D Product Drawings

CT26SERI-ESD-S(91.5 kB, PDF)

Other

CT26.44BM RoHS Certificate(279.2 kB, PDF)
