XY Cylindrical Device Mounts for X26 Rails
XY Cylindrical Device Mounts for X26 Rails

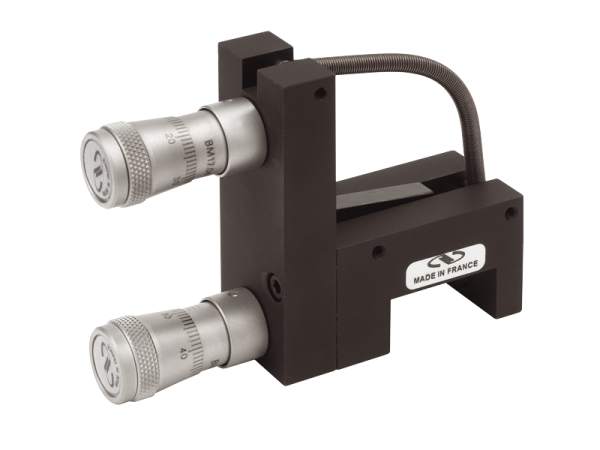

CT26 optical rail mounts are used to accurately position cylindrical lasers on the X26 rail system. These mounts are very useful for laboratory applications and remain highly rigid and stable for a long period of time.
- Adjustable two-axis mounts for cylindrical lasers
- 0.16 in. (4 mm) XY travel
- Compatible with X26 Series optical rails See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CT26.35BM XY Cylindrical Device Mounts for X26 RailsCylindrical Laser Mount, 1.38 in. (35 mm), BM micrometers | |||||
 | CT26.44BM XY Cylindrical Device Mounts for X26 RailsCylindrical Laser Mount, 1.73 in. (44 mm), BM micrometers | |||||
 | CT26.50BM XY Cylindrical Device Mounts for X26 RailsCylindrical Laser Mount, 1.97 in. (50 mm), BM micrometers |
Features
Compatible with X26 Optical Rail System
Two mounts are recommended for holding each cylindrical device to enable 0.16 in. (4 mm) of stable XY and tip/tilt adjustment. The beam height is 40 mm, directly compatible with the X26 rail system with no carrier required. Lateral sensitivity is on the order of the BM actuator sensitivity.
Firm Mounting of Cylindrical Lasers
The laser is held firmly against a reference block by a spring that wraps around the tube.
