Diffraction Grating Mount, 12.5 mm, Fixed

$Adjustable Diffraction Grating Mounts$

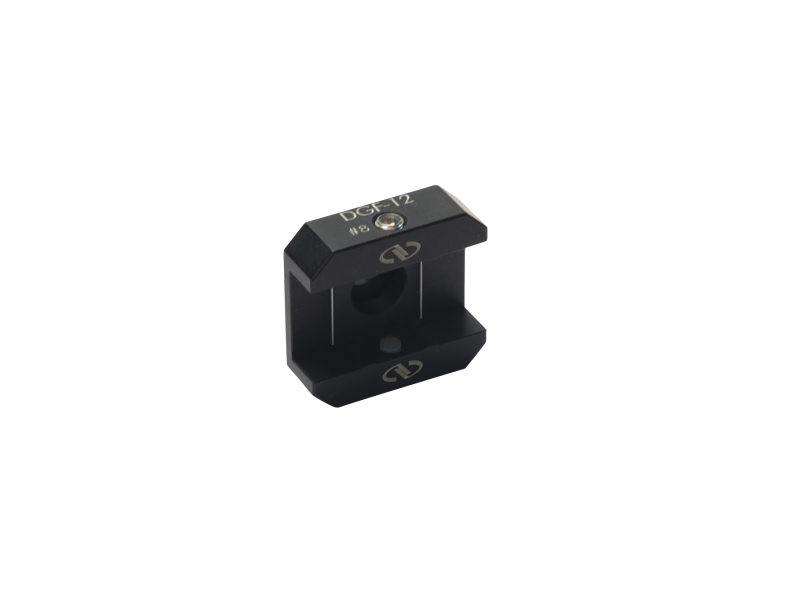

The DGF-12 is fixed diffraction grating adapter/mount designed to hold square or rectangular gratings that are 12.5 mm in height . This compact mount is designed to be either post mounted or mounted into compatible 1/2-in. mirror mounts which provide pitch/yaw adjustment. It can be post mounted via either its 8-32 or M4 thread.

Specifications

Technical Specs

Adjustments
Fixed
Optic Thickness
6 mm
Material
Anodized Aluminum

Adjustments
Fixed
Optic Thickness
6 mm
Material
Anodized Aluminum

Resources & Downloads

Drawings And Cad

DGF-12 Drawing(120 kB, PDF)

Other

DGF-12 RoHS Certificate(277.6 kB, PDF)
DGF-12_RoHS2021.pdf(680.8 kB, PDF)
