Light Shield System, Adjustable Light Port, 12 in. Height
Light Shield System, Adjustable Light Port, 12 in. Height
Model: ELM-LP
Product Series Overview

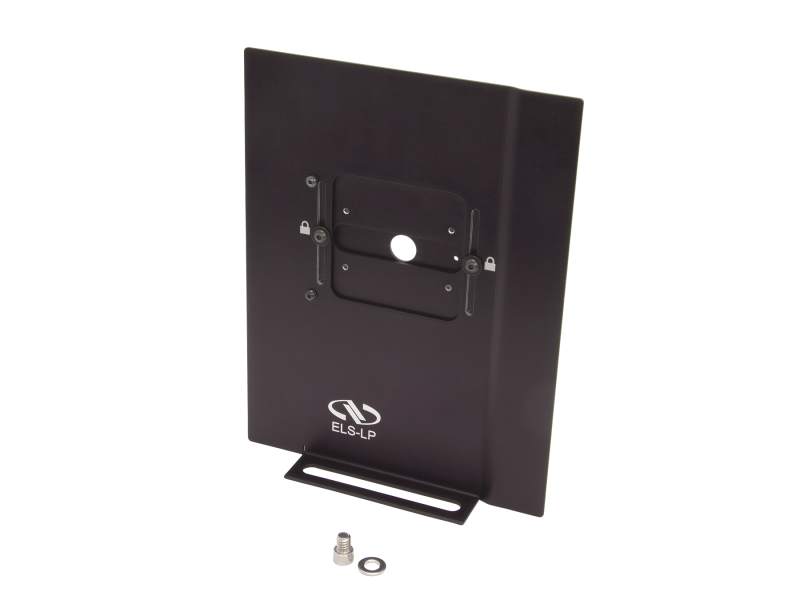

Perimeter Light ShieldsThe ELM-LP Adjustable Light Port is used to allow the passing of optical beams into and out of the 12-inch-tall ELM perimeter enclosure. The port diameter is 0.5 in. (12.7 mm) and can be manually adjusted approximately 3 in. (72 mm) vertically and 2 in. (51 mm) laterally for alignment. The height range of the port is 4.25 to 7.25 in. (108 to 184 mm). Mounting slots are provided for mounting flexibility. Create what you need for your setup assured all of the ELM pieces are made to work together.
