Light Shield System, 12 in. (304.8 mm) Height, 6 in. (152.4 mm) Long
Light Shield System, 12 in. (304.8 mm) Height, 6 in. (152.4 mm) Long
Model: ELM-P6
Product Series Overview

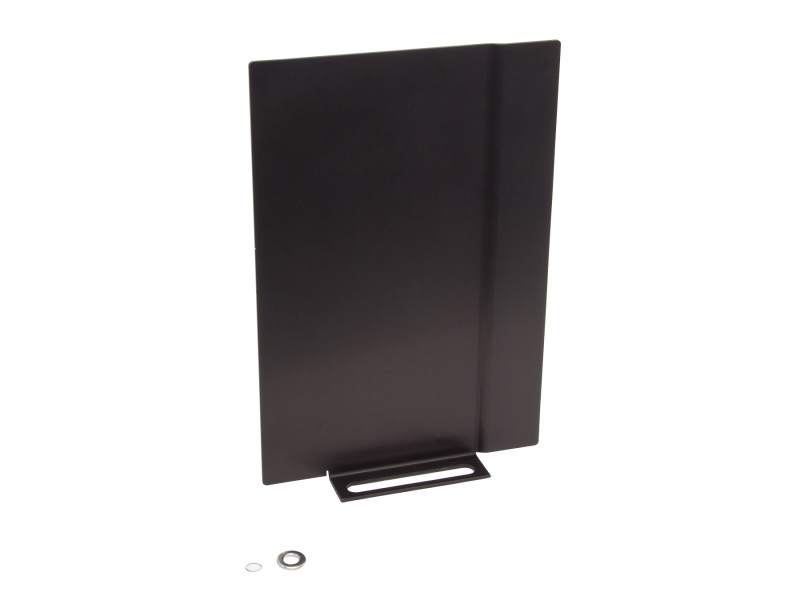

Perimeter Light ShieldsThe ELM-P6 Light Shield is used to build a light-blocking enclosure. It helps keep unintentional light reflections where they should be, and keep stray light from affecting your measurements. Additionally, the Light Shield also shields from clumsy colleagues who might inadvertently bump your perfectly aligned optics path. This item is six inches (152.4 mm) long and can be used with the entire ELS Light Shield family of products. Create what you need for your setup assured the pieces are made to work together.
Resources & Downloads
Drawings And Cad
ELM-P6.PDF(19 kB, PDF)
Other
ELM-P6_RoHS2021.pdf(682.6 kB, PDF)
