Inner Bracket, Compatible with UMR5 Stages
Inner Bracket, Compatible with UMR5 Stages
Model: EQ50-I
Product Series Overview

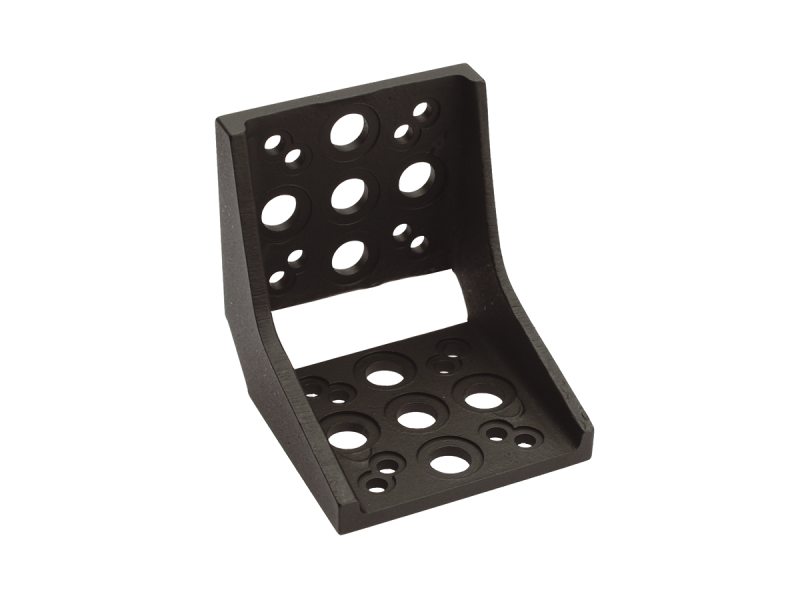

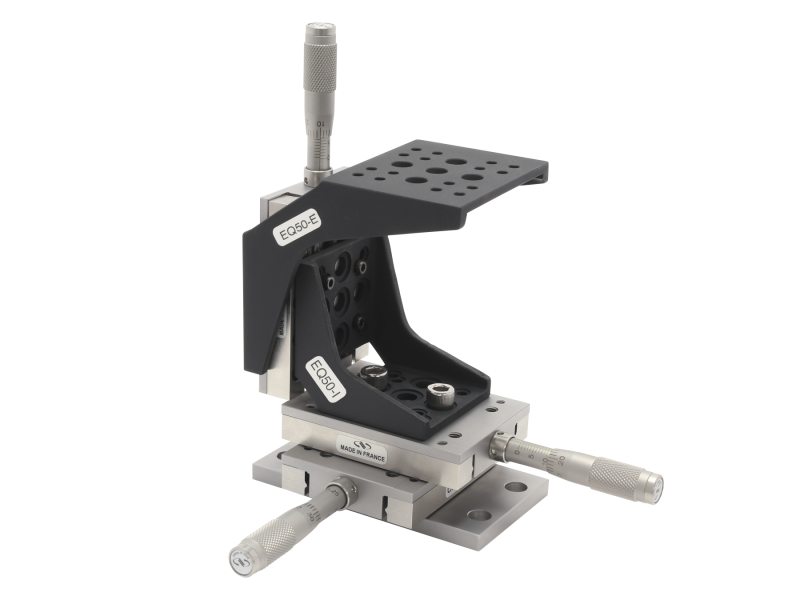

EQ Manual Stage 90 Degree Angle BracketsThe EQ50-I Inner Right Angle Bracket is compatible with UMR5 stages. With EQ Series Angle Brackets, multi-axis positioners can be assembled from two or more standard UMR and/or UTR Series positioners. Individual positioners assembled with mounting brackets give you a greater range of positioning versatility with fewer total components. Because components and brackets can be reused in different configurations to meet your changing needs, modular multi-axis systems are a great way to get the most value from your equipment.
