Outer Bracket, Compatible with UMR5 Stages

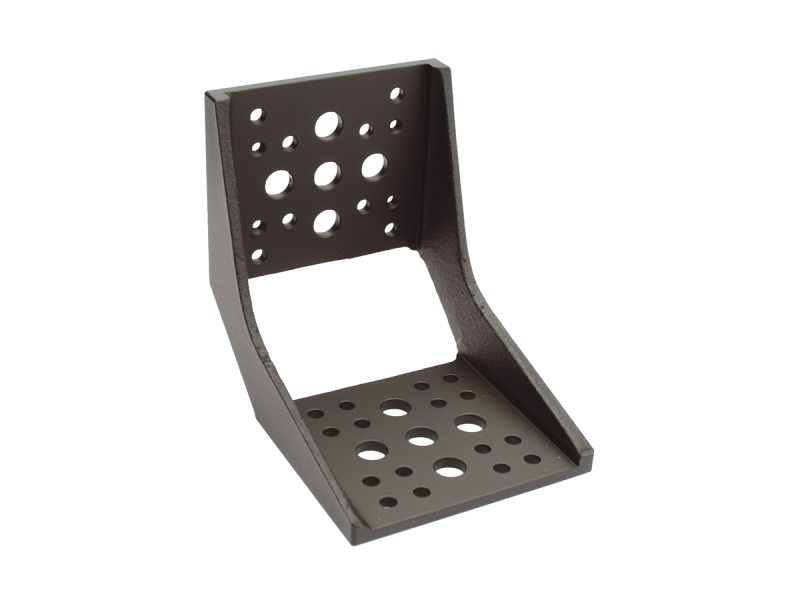

EQ Manual Stage 90 Degree Angle Brackets

The EQ50-E Outer Right Angle Bracket is compatible with UMR5 stages. With EQ Series Angle Brackets, multi-axis positioners can be assembled from two or more standard UMR and/or UTR Series positioners. Individual positioners assembled with mounting brackets give you a greater range of positioning versatility with fewer total components. Because components and brackets can be reused in different configurations to meet your changing needs, modular multi-axis systems are a great way to get the most value from your equipment.

Specifications

Technical Specs

Type
90° Outer Angle Bracket
Material
Anodized Aluminum

Use
UMR5 Stages

Type
90° Outer Angle Bracket
Material
Anodized Aluminum

Use
UMR5 Stages

Resources & Downloads

3D Product Models

2D Product Drawings

EQ50-E.pdf(409.6 kB, PDF)

Other

EQ50-E RoHS Certificate(279 kB, PDF)
