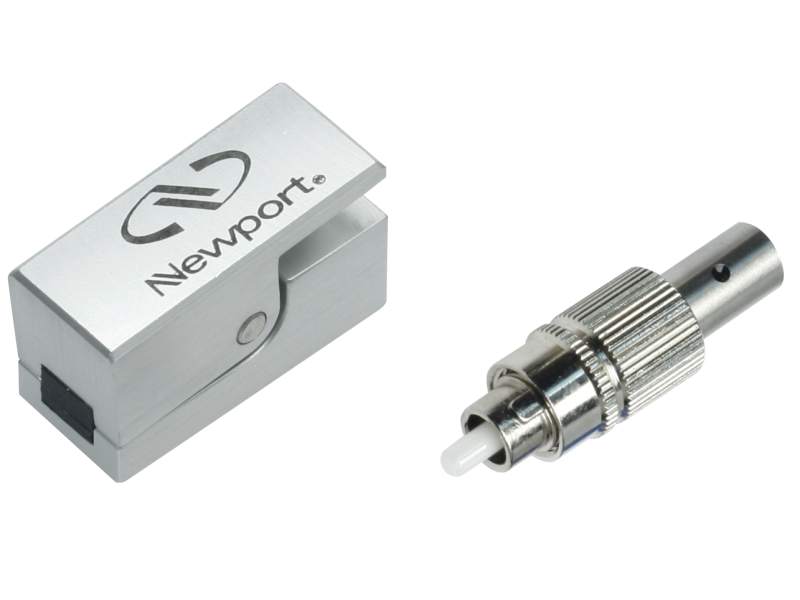

Bare Fiber Adaptor, Multi-mode, FC Connector
Bare Fiber Adaptor, Multi-mode, FC Connector
Model: F-AM-FC
Product Series Overview
Bare Fiber AdaptersThe F-AM-FC Bare Fiber Adaptor enables quick and easy temporary FC connections of multi-mode fibers. This adaptor is very useful for connecting fibers to power meters. Optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.
The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 μm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.
The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 μm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-AM-KITBare Fiber Adaptor Kit, Multi-mode, FC, SC, and ST Connectors | |||||
 | F-AM-SCBare Fiber Adaptor, Multi-mode, SC Connector | |||||
 | F-AM-SMABare Fiber Adaptor, Multi-mode, SMA Connector | |||||
 | F-AM-STBare Fiber Adaptor, Multi-mode, ST Connector | |||||
 | F-AS-FCBare Fiber Adaptor, Single-mode, FC Connector |
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-MSDMultimode Fiber, Graded Index, 850/1300 nm, 0.20 NA, 50 µm Core | |||||
| F-MFDMultimode Fiber, Graded Index, 850/1300 nm, 0.275 NA, 62.5 µm Core | |||||
| F-MSD-TMultimode Fiber, Graded Index, High Temp, 850/1300nm, 0.20 NA, 50µm Core | |||||
| F-MFD-TMultimode Fiber, Graded Index, High Temp, 850/1300 nm, 0.275 NA, 62.5 µm Core |
