Bare Fiber Adapters
Bare Fiber Adapters
The F-AS and F-AM Bare Fiber Adapters enable quick and easy temporary connections of single-mode and multimode fibers.
- Temporary connections for multimode and single-mode fibers
- FC, SC, SMA and ST connectors available for multimode fibers
- FC, SC and ST connectors available for single-mode fibers
- Can accommodate fiber buffers with up to 900um size See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-AM-FC Bare Fiber AdaptersBare Fiber Adaptor, Multi-mode, FC Connector | |||||
 | F-AM-KIT Bare Fiber AdaptersBare Fiber Adaptor Kit, Multi-mode, FC, SC, and ST Connectors | |||||
 | F-AM-SC Bare Fiber AdaptersBare Fiber Adaptor, Multi-mode, SC Connector | |||||

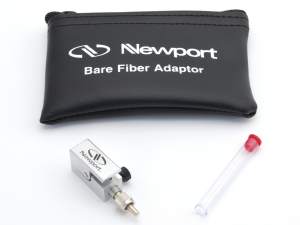

 | F-AM-SMA Bare Fiber AdaptersBare Fiber Adaptor, Multi-mode, SMA Connector | |||||
 | F-AM-ST Bare Fiber AdaptersBare Fiber Adaptor, Multi-mode, ST Connector | |||||

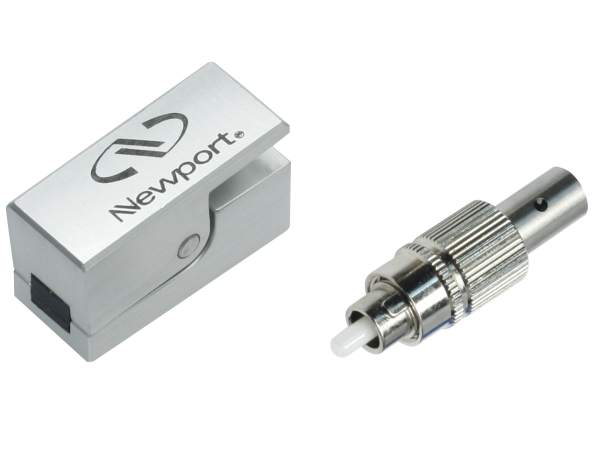

 | F-AS-FC Bare Fiber AdaptersBare Fiber Adaptor, Single-mode, FC Connector | |||||
| F-AS-KIT Bare Fiber AdaptersBare Fiber Adaptor Kit, Single-mode, FC, SC, and ST Connectors | |||||

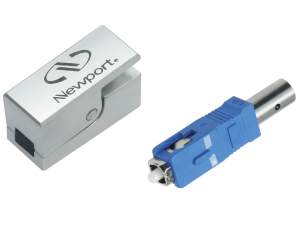

 | F-AS-SC Bare Fiber AdaptersBare Fiber Adaptor, Single-mode, SC Connector | |||||

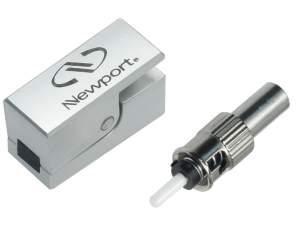

| F-AS-ST Bare Fiber AdaptersBare Fiber Adaptor, Single-mode, ST Connector |
Features
Connect Fibers Quickly to Important Equipment
These adapters are very useful for connecting fibers to power meters, optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.
Great Precision Up to 900 µm Fiber
Bare fiber is secured in place with a special precision cut foam pad to ensure kink- and diffusion-free operation and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated.
Single-mode and Multimode Adapter Kits

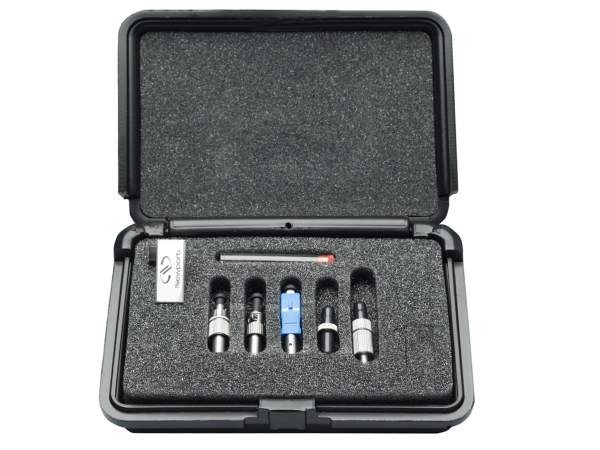

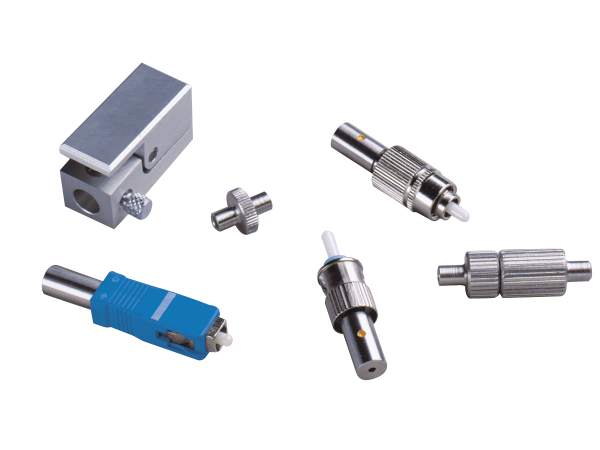

Also available are kits that contain a single adapter body, FC, SC and ST interchangeable connector tips, a universal mating sleeve for quick ferrule-to-ferrule connections and a fiber stop to ensure that bare cleaved fibers are flush with the front of the connector ferrule. Piano wires for cleaning blocked ferrules are also included with all adapters.
Resources
Manuals
Bare Fiber Adapter Kit User Manual(150.3 kB, PDF)
