Fixed Angle Mount Adapter, 30 Degree, 8-32 Threads

Fixed Angle Optical Mount Adapters

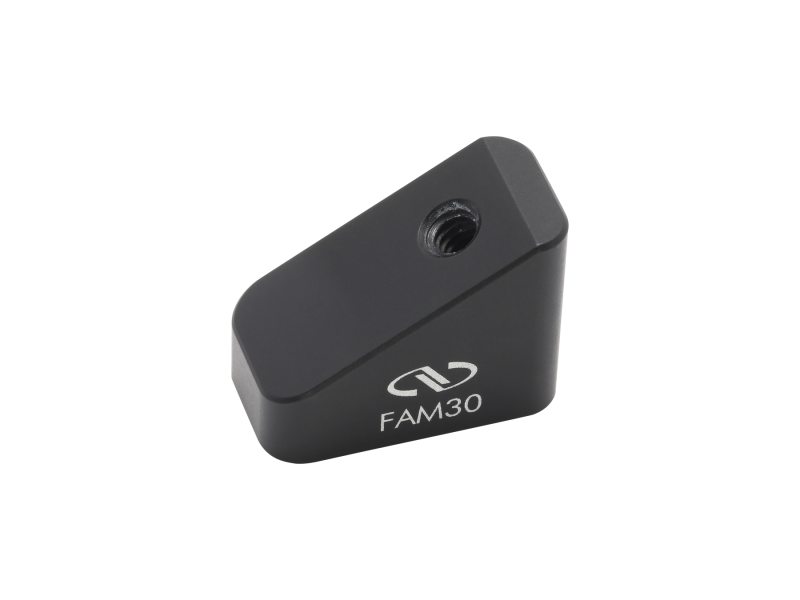

The FAM30 fixed angle optical mount adapter features a 30 degree fixed mounting angle and 8-32 mounting threads. It is used to attach optical mounts or other optomechanics at a fixed angle on top of an optical post.

Specifications

Technical Specs

Type
Fixed Angle Mounting Adapter
Thread Type
8-32
Fixed Mounting Angle
30°
Pack Quantity
1

Material
Aluminum

Type
Fixed Angle Mounting Adapter
Thread Type
8-32
Fixed Mounting Angle
30°
Pack Quantity
1

Material
Aluminum

Resources & Downloads

Drawings And Cad

FAM30_M-FAM30.pdf(36.3 kB, PDF)

Other

MKS RoHS2-2021 Certificate Fixed Angle Mount Family.pdf(695 kB, PDF)
