Fixed Angle Optical Mount Adapters
Fixed Angle Optical Mount Adapters
Fixed angle optical mount adapters provide a simple mounting block for fixed angle mounting of an optical mount on top of an optical posts. The matching threaded holes in the top and bottom offer easy assembly.
- Mount an optical mount at a fixed angle
- Compatible with optical posts
- Imperial or metric mounting holes See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FAM16 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 16 Degree, 8-32 Threads | |||||
 | FAM24 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 24 Degree, 8-32 Threads | |||||

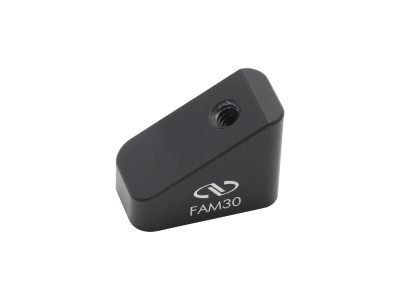

 | FAM30 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 30 Degree, 8-32 Threads | |||||
 | FAM353 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 35.3 Degree, 8-32 Threads | |||||
 | FAM4 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 4 Degree, 8-32 Threads | |||||
 | FAM40 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 40 Degree, 8-32 Threads | |||||
 | FAM45 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 45 Degree, 8-32 Threads | |||||

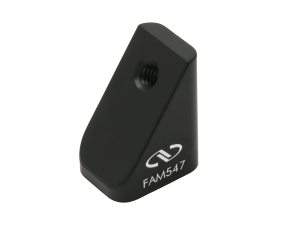

 | FAM547 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 54.7 Degree, 8-32 Threads | |||||
 | FAM8 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 8 Degree, 8-32 Threads | |||||
| M-FAM4 Fixed Angle Optical Mount Adapters Fixed Angle Mount Adapter, 4 Degree, M4 Threads |
Features
Available in Nine Angle Options
Our Fixed Angle Optical Mount Adapters are used to orient optical components at several fixed angles from 4° to 54.7°. They are offered in both imperial and metric versions to suit your experiment.
Threaded Holes at Top and Bottom
These angle blocks feature 8-32 (M4) threaded hole on the top surface to attach mirror mounts or other optomechnical components. Another threaded hole is at the bottom for mounting to optical post.
Magic Angle Blocks
FAM353 and FAM547 angle blocks are designed to ensure isotropic signals in ultrafast applications such as Transient Absorption Spectroscopy (TAS), Femtosecond Stimulated Raman Spectroscopy (FSRS), and Time-Resolved Fluorescence Spectroscopy (TRFLS). They help to orient the polarizer or beamsplitter to achieve magic angle of polarization between the pump and probe beams (54.7° for linearly polarized probe beam, 35.3° for circularly polarized probe beam) to give a decay signal free from orientational dynamics in samples that are free to rotate or reorient on the molecular level. Please note the rejected beams can travel vertically and extra measures such as eye protection and beam blocks may be required.
