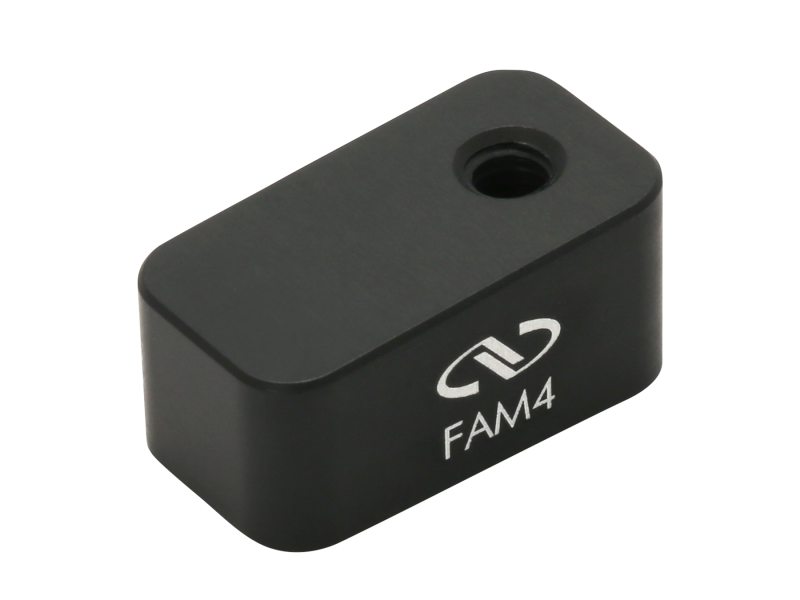

Fixed Angle Mount Adapter, 4 Degree, M4 Threads

The M-FAM4 fixed angle optical mount adapter features a 4 degree fixed mounting angle and M4 mounting threads. It is used to attach optical mounts or other optomechanics at a fixed angle on top of an optical post.

Specifications

Technical Specs

Type
Fixed Angle Mounting Adapter
Thread Type
M4

Pack Quantity
1
Material
Aluminum

Type
Fixed Angle Mounting Adapter
Thread Type
M4

Pack Quantity
1
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

FAM4_M-FAM4.pdf(33.8 kB, PDF)

Other

MKS RoHS2-2021 Certificate Fixed Angle Mount Family.pdf(695 kB, PDF)

Related Products

Accessories

Description	Compatibility
Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	Learn More
Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	Learn More
Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	Learn More
Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	Learn More
Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	Learn More

Similar

Description	Compatibility
Optical Pedestal, 1.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	Learn More
Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	Learn More
Optical Pedestal, 3.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	Learn More

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Mirror Mount, Suprema<sup>®</sup>, Clear Edge, 1.0 in., No Adjusters	UNIVERSAL				Learn More

Need help?

Contact an Applications Specialist by sending us an email
