45-Degree Mirror Mounts
45-Degree Mirror Mounts
Mirror mount adaptors extend the utility of your mirror mount by allowing different types of optics to be used in standard mounts.
- Adapt filters, cubes, polarizers, objectives, or fiber to mirror mounts
- Simple, cost-effective solution for mounting different types of optics
- Covers 0.5 in. 1.0 in. and 2.0 in. mirror mount sizes See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9920 45-Degree Mirror Mounts45 Degree Mirror Holder, 25.4 mm Diameter | |||||
 | 9922 45-Degree Mirror MountsTiny 45 Degree Mirror Holder, 12.7 mm Diameter | |||||

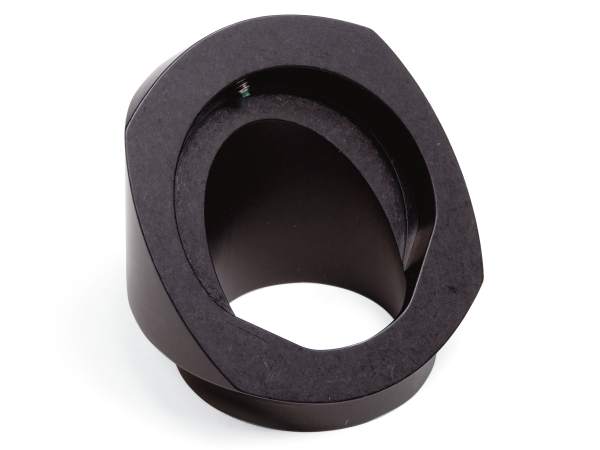

 | 9924 45-Degree Mirror Mounts45 Degree Mirror Holder, 50.8 mm Diameter | |||||
 | OAP-ADAPT 45-Degree Mirror MountsParabolic Mirror Adapter, 1.5 in. Series Flange | |||||

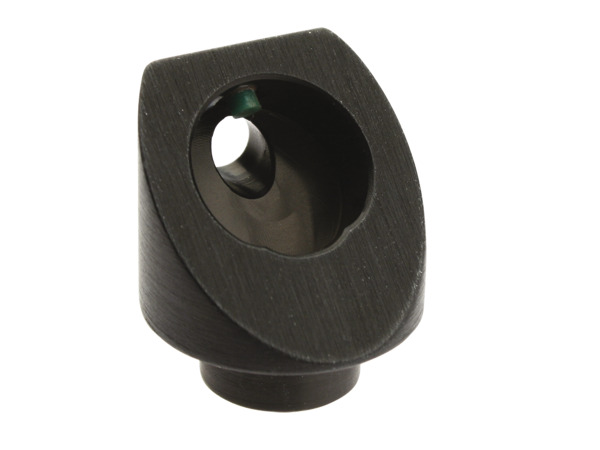

 | UPA-45D.5 45-Degree Mirror Mounts45 Degree Mirror Holder, 12.7 mm Diameter | |||||
| UPA-45D1 45-Degree Mirror Mounts45 Degree Mirror Holder, 25.4 mm Diameter |
Features

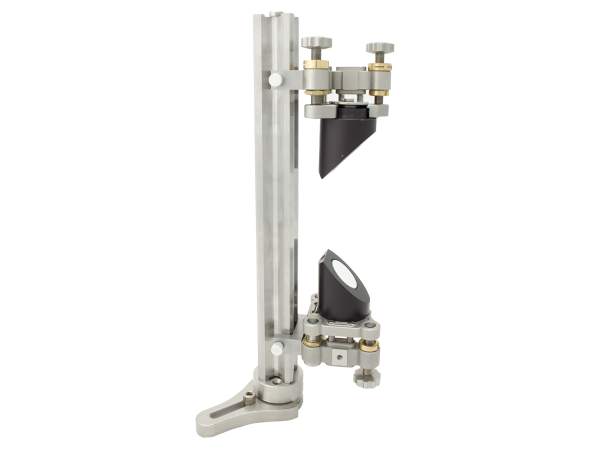

Make Your Own Periscope
45-Degree mirror adaptors are the key component needed for creating a custom periscope. With a couple of mirror mounts, a long post and two sliding clamps, you can use these 45-degree adaptors to create a 1/2-, 1-, or 2-in. diameter custom periscope to your exact height specifications.
Beam Splitting
The New Focus 9920, 9922, and 9924 45-degree mirror adaptors have a thru-hole aperture allowing the optical beam to be both transmitted and reflected; perfect for beam splitting applications.
Threaded Base for Post Mounting
The UPA-45D 45-degree adaptors are not only made to be installed into mirror mounts but have a threaded base to allow fixed post mounting. In this capacity, they can be used to direct an optical beam from a horizontal trajectory to a vertical one.
Accessories
Compatible 0.5-in. Mounts
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9876-K Mirror Mount, Tiny, Corner, 0.5 in., 3 Allen-Keys | |||||
 | M05L Mirror Mount, 0.5 in., Keying Pin Holes, 2 Locking Hex Actuators | |||||
 | SS050-F3 Mirror Mount, Suprema<sup>®</sup>, 0.5 in., (3) 100-TPI Locking Allen-Key Actuators | |||||
 | U50-A1 Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 0.5 in., (3) 100-TPI Allen-Keys |
Compatible 1-in. Mounts
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9807 Mirror Mount, Classic, Center, 1.0 in., 3 Knobs | |||||

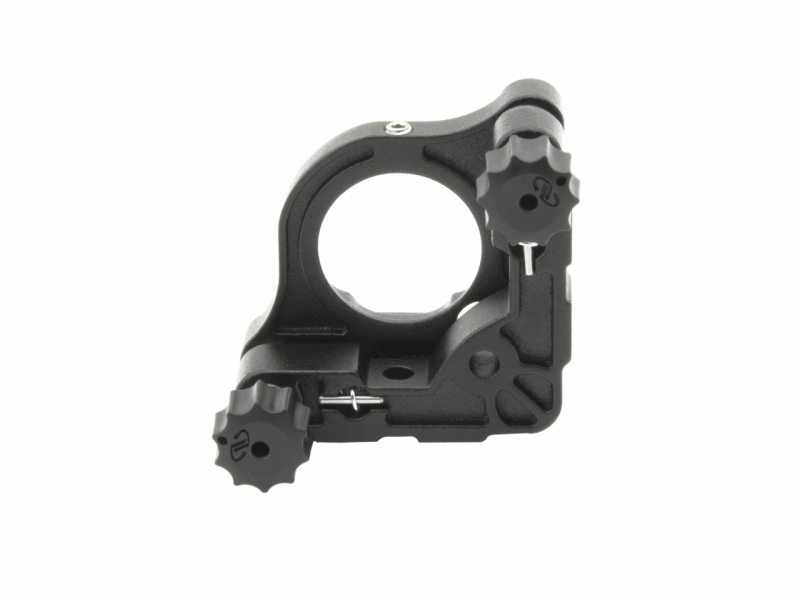

 | M1 Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators | |||||
 | SN100C-F2K Mirror Mount, Suprema<sup>®</sup>, Clear Edge, 1.0 in, (2) 127-TPI Locking Knobs | |||||
 | U100-A2K Mirror Mount, ULTIMA<sup>®</sup>, Clear Edge, 1.0 in., 2 Locking Knobs |
