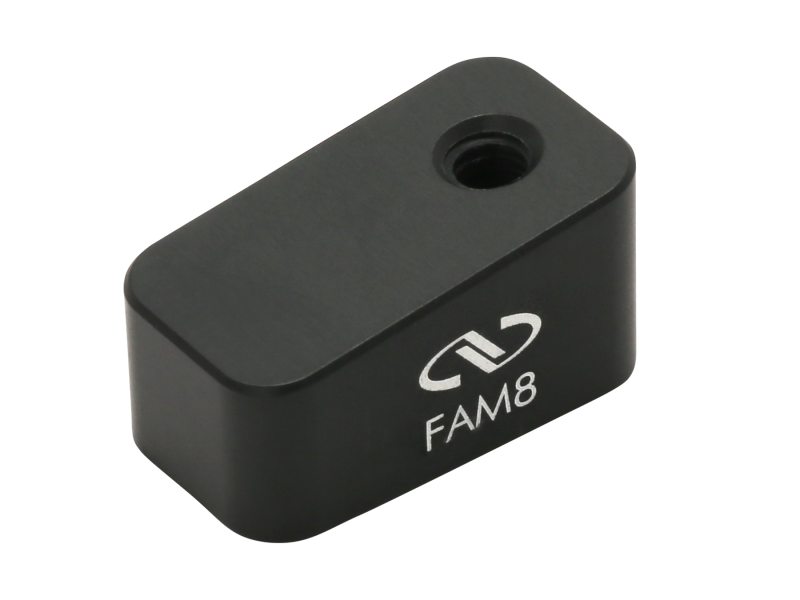

Fixed Angle Mount Adapter, 8 Degree, 8-32 Threads

The FAM8 fixed angle optical mount adapter features a 8 degree fixed mounting angle and 8-32 mounting threads. It is used to attach optical mounts or other optomechanics at a fixed angle on top of an optical post.

Specifications

Technical Specs

Type
Fixed Angle Mounting Adapter
Thread Type
8-32

Pack Quantity
1
Material
Aluminum

Type
Fixed Angle Mounting Adapter
Thread Type
8-32

Pack Quantity
1
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

FAM8_M-FAM8.pdf(35.7 kB, PDF)

Other

MKS RoHS2-2021 Certificate Fixed Angle Mount Family.pdf(695 kB, PDF)
