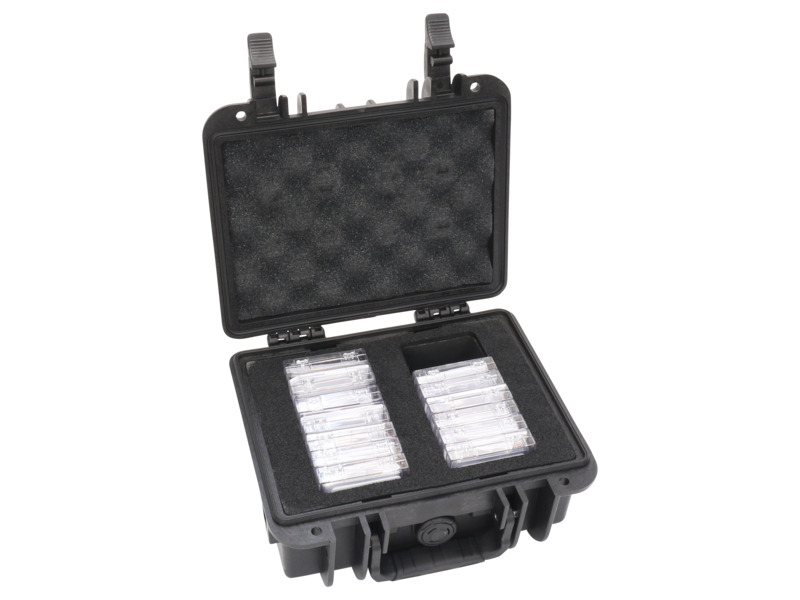

Longpass Edge Filter Set, 25.4 mm, Includes 13 Edge Filters and Storage Case

The FS-LWF-B-P Longpass Edge Filter Set includes 13 of our 25.4 mm diameter long-pass filters with cut-on wavelengths ranging from 450 to 1000 nm and a storage case. Our long-wave pass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass longpass filters. Long-wave pass filters have out-of-band rejection =OD 3 to X-ray. Typical transmission is =80%. These optical filters are available individually. Products included in this set are listed below.

Specifications

Technical Specs

Type
Longpass Filter Set
Optic Size
Ø25.4 mm
Transmission
≥80%
Effective Index of Refraction
1.7

Temperature Range
-50 to100°C
Wavelength Shift with Temperature
0.025 nm/°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles
Cleaning
See How to Clean Optics

Type
Longpass Filter Set
Optic Size
Ø25.4 mm
Transmission
≥80%
Effective Index of Refraction
1.7

Temperature Range
-50 to100°C
Wavelength Shift with Temperature
0.025 nm/°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles
Cleaning
See How to Clean Optics

Related Products

Products Included in This Set

Description	Compatibility
Longpass Filter, Dielectric, 25.4 mm, 1000±7 nm Cut-On, 1020 - 2200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 400 ± 5 nm Cut-On, 410 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 450 ± 5 nm Cut-On, 460 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 500 ± 5 nm Cut-On, 510 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 550 ± 5 nm Cut-On, 560 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 600 ± 5 nm Cut-On, 610 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 650 ± 5 nm Cut-On, 660 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 700 ±6 nm Cut-On, 715 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 750 ± 6 nm Cut-On, 765 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 800 ± 6 nm Cut-On, 815 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 850 ± 7 nm Cut-On, 865 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 900 ± 7 nm Cut-On, 920 - 1200 nm	UNIVERSAL	Learn More
Longpass Filter, Dielectric, 25.4 mm, 950 ± 7 nm Cut-On, 970 - 1200 nm	UNIVERSAL	Learn More
