Optical Filter Wheel, Eight Position, 1.0 in. Diameter, Edge Grip

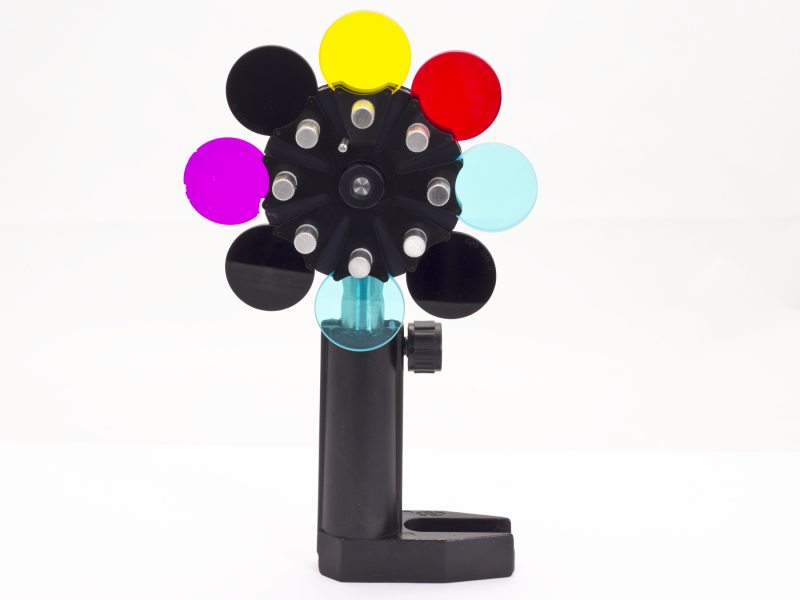

The Edge Grip™ FWH1 is a unique eight-position, clear edge filter wheel. Its new Edge Grip filter mounting design makes it stand out from other filter wheels. While typical filter wheels employ cumbersome retaining rings to hold the filters, the FWH1's clip mounting design allows fast, tool-free installation / removal. The unique clip design has the added benefit of giving clear edge access to the filters it holds. Additionally, it can hold up to eight filters instead of just six. The FWH1 has two threaded holes (one 8-32 and one M4) in its body for post mounting

Specifications

Technical Specs

Filter Shape
Round
Filter Diameter
25.4 mm
Maximum Thickness
4 mm

Mechanism
Thumbscrew Clamp
Mounting Threads
8-32 and M4
Filter Size Circular or Square
25.4 mm

Filter Shape
Round
Filter Diameter
25.4 mm
Maximum Thickness
4 mm

Mechanism
Thumbscrew Clamp
Mounting Threads
8-32 and M4
Filter Size Circular or Square
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

FWH1(321.2 kB, PDF)

Other

FWH1 RoHS Certificate(277.8 kB, PDF)
