SM1 Threaded Iris Diaphragm, Ring-Actuated, 1-12 mm Aperture Range
SM1 Threaded Iris Diaphragm, Ring-Actuated, 1-12 mm Aperture Range
Model: ID-0112SM1
Product Series Overview

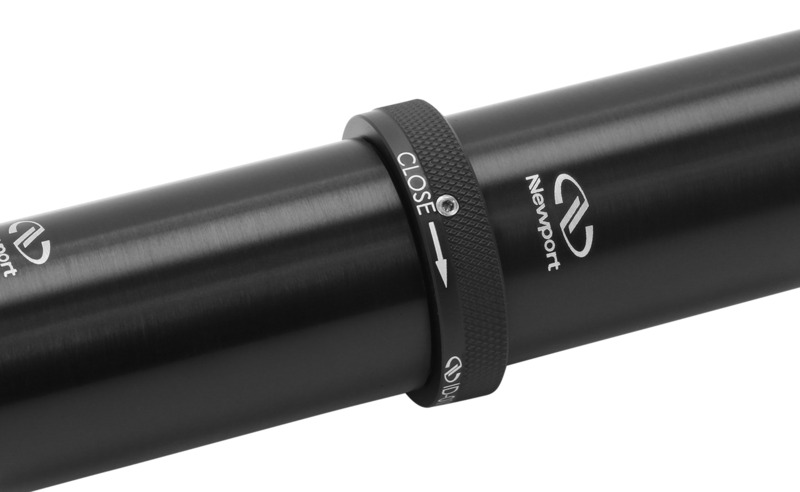

Ring Actuated Threaded Iris DiaphragmsThe ID-0112SM1 iris diaphragm is SM1-threaded for use with opto-mechnical components with 1.035-40 thread. The ring-actuated iris diaphragm is low profile with no lever sticking up that could lead to unintended changes. A setscew on the side of housing can further lock the iris in place after designed opening is achieved.
Resources & Downloads
Drawings And Cad
ID-0112SM1 RING ACTUATED IRIS.pdf(211.5 kB, PDF)
Other
ID-0112SM1_RoHS2021.pdf(683.5 kB, PDF)
