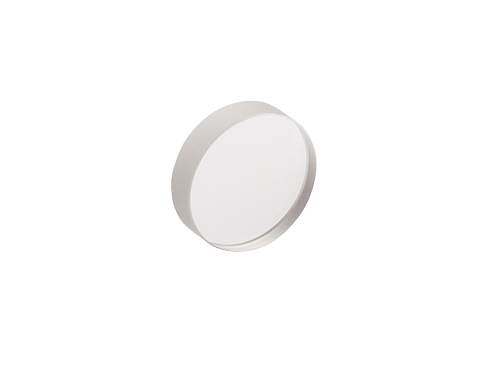

Bi-Convex Lens, N-BK7, 12.7 mm Diameter, 12.7 mm EFL, 1064nm

The KBX022AR.33 N-BK7 Bi-Convex Lens is a 1/2 inch (12.7 mm) diameter, 1064 nm anti-reflection coated, N-BK7 bi-convex lens with an effective focal length of 12.7 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision bi-convex lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Bi-Convex
Diameter
12.7 mm
Lens Material
N-BK7
Antireflection Coating
1064 nm
Coating Type
Laser Line V-Coat Multilayer
Coating Code
AR.33
Damage Threshold
12 J/cm² for 10 ns pulses, 10 Hz @ 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
1
Effective Focal Length (EFL)
12.7 mm
Back Focal Length (BFL)
10.26 mm

Edge Thickness (Te)
3.0 mm
Center Thickness (Tc)
6.680 mm
Principal Plane 1 (P1)
2.43 mm
Principal Plane 2 (P2)
-2.43 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Bi-Convex
Diameter
12.7 mm
Lens Material
N-BK7
Antireflection Coating
1064 nm
Coating Type
Laser Line V-Coat Multilayer
Coating Code
AR.33
Damage Threshold
12 J/cm² for 10 ns pulses, 10 Hz @ 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
1
Effective Focal Length (EFL)
12.7 mm
Back Focal Length (BFL)
10.26 mm

Edge Thickness (Te)
3.0 mm
Center Thickness (Tc)
6.680 mm
Principal Plane 1 (P1)
2.43 mm
Principal Plane 2 (P2)
-2.43 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics
