Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount

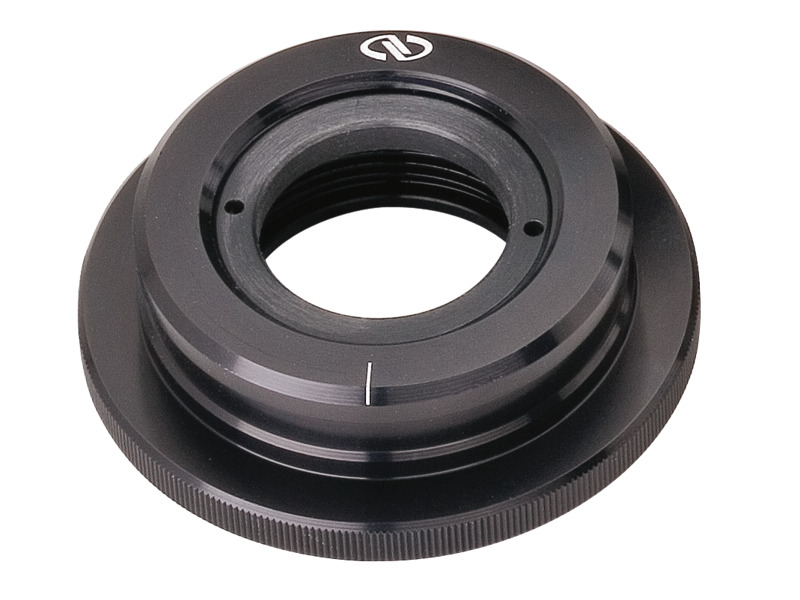

The LH1-1R Optic Holder Cell forms a convenient optical mounting system that speeds your experimental work. 1 inch (25.4 mm) lenses are mounted in a cell with a Delrin retainer ring, protecting them from fingerprints and scratches. Cell mounted lenses are held in the LM1-R lens mount ring by a spring-loaded detent, allowing optics to be quickly removed and replaced. Additionally, polarization optics can be accurately rotated using graduations marked every 2°. LM1-R lens mounts can be post or pedestal mounted. The lens holder cells and lens mounts are sold separately.

Specifications

Technical Specs

Type
Lens Mount Adapter
Optic Diameter
25.4 mm
Use
LM1-R Lens Rotation Mount

Retaining Ring
A-1.25-1RR (Included)
Retaining Ring Thread
1.063-20

Type
Lens Mount Adapter
Optic Diameter
25.4 mm
Use
LM1-R Lens Rotation Mount

Retaining Ring
A-1.25-1RR (Included)
Retaining Ring Thread
1.063-20

Resources & Downloads

3D Product Models

2D Product Drawings

LH-R Optic Holder(243.2 kB, PDF)

Other

LH1-1R RoHS Certificate(277.6 kB, PDF)
LH1-1R_RoHS2021.pdf(679.8 kB, PDF)
