LM Series Nested Manual Optic Rotation Mounts

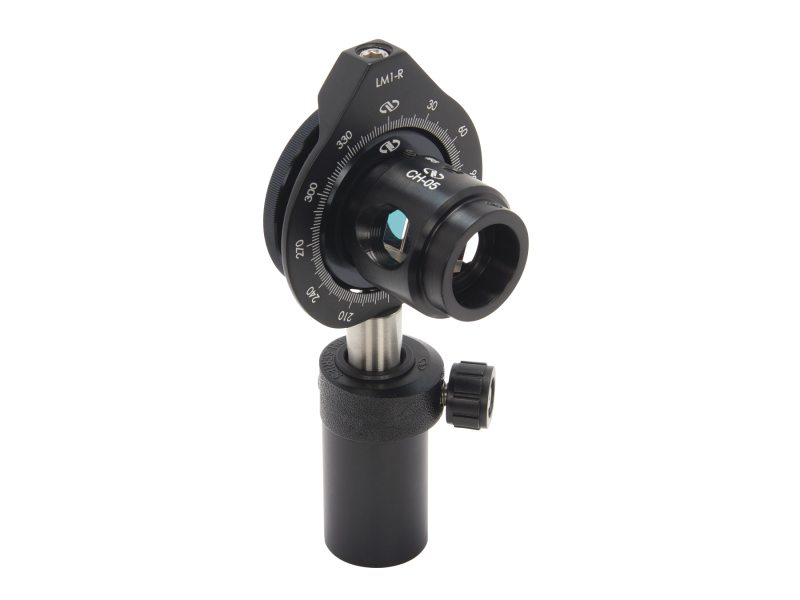

Our nested optic rotation mounts feature a graduated optic cell holder ring with a spring loaded detent that accepts optic rotation cells supporting various optic sizes. This versatile optical mounting system provides snap-in mounting for lenses and rotation for polarizers.

Quick change, spring-loaded mount
Common optical axis regardless of diameter
Graduated dial for rotation of polarizers
Thin profile is ideal for beamsplitters
Post and pedestal mountable

See All Features

Description	Compatibility	Optic Diameter	Price
LH1-0.25R Nested Optic Rotation Mounts Optic Holder Cell, 0.25 in. Diameter Optics, Requires LM1-R Mount	UNIVERSAL	6.35 mm	$36

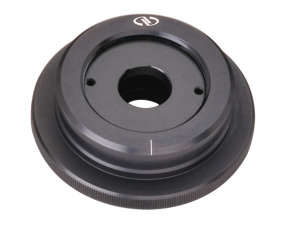

LH1-0.5R Nested Optic Rotation Mounts Optic Holder Cell, 0.5 in. Diameter Optics, Requires LM1-R Mount	UNIVERSAL	12.7 mm	$30

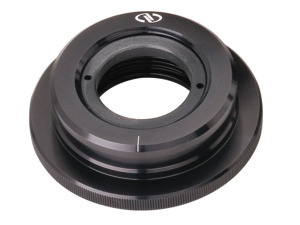

LH1-1R Nested Optic Rotation Mounts Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount	UNIVERSAL	25.4 mm	$30

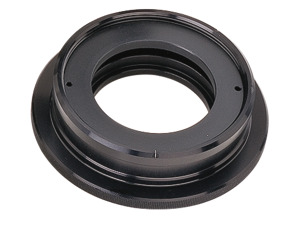

LH2-1.5R Nested Optic Rotation Mounts Optic Holder Cell, 1.5 in. Diameter Optics, Requires LM2-R Mount	UNIVERSAL	38.1 mm	$49

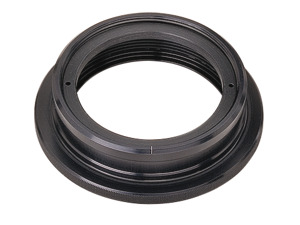

LH2-2R Nested Optic Rotation Mounts Optic Holder Cell, 2.0 in. Diameter Optics, Requires LM2-R Mount	UNIVERSAL	50.8 mm	$42

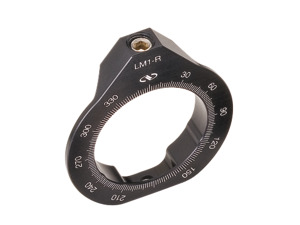

LM1-R Nested Optic Rotation Mounts Optic Cell Rotation Mount, 2° Graduations, For LH1 Optic Cells	UNIVERSAL		$56

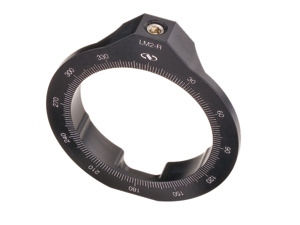

LM2-R Nested Optic Rotation Mounts Optic Cell Rotation Mount, 2° Graduations, For LH2 Optic Cells	UNIVERSAL		$74

Features

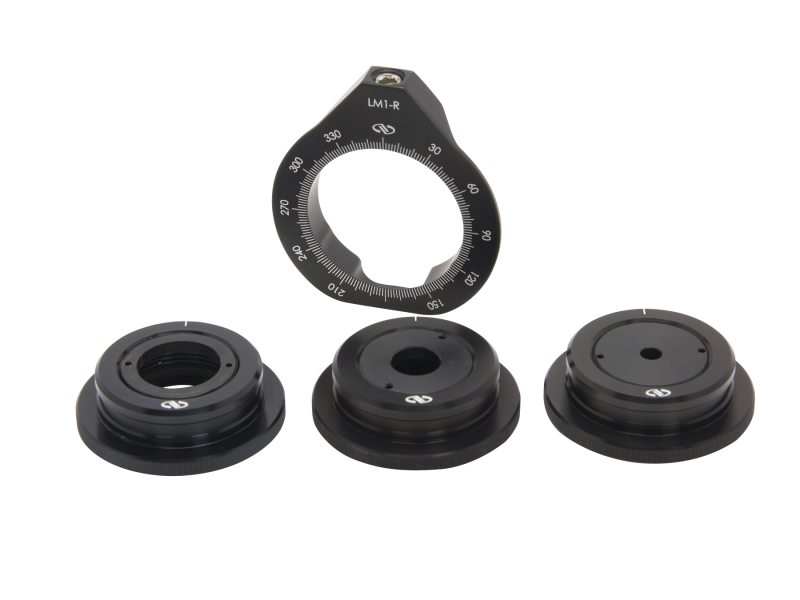

Optic Cells Snap Into Graduated Mounts

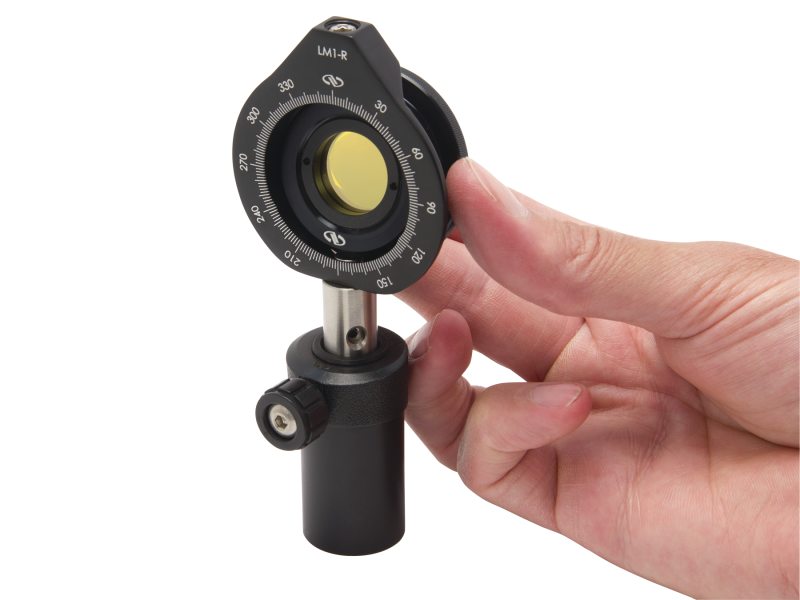

The spring loaded retainer on the LM series optic cell mount allows the LH series lens cells to be snapped in and out with ease. Additionally, polarization optics can be accurately rotated using graduations marked every 2°. The lens mounts can be post or pedestal mounted.

Common Optical Axis Regardless of Diameter

The nesting design of these lens holders keeps a constant optical axis regardless of lens cell size. LH1 optic holder cells are compatible with the LM1-R rotation mount, and LH2 optic holder cells are compatible with the LM2-R rotation mount.
