Alignment Target, Hanging, A-Line

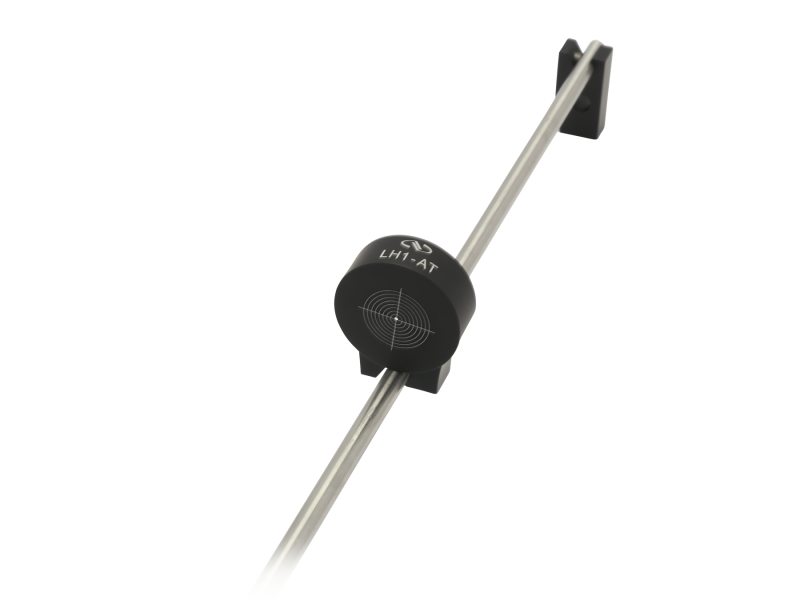

The hanging target can be quickly and easily dropped onto one of our 1'' fixed lens holders allowing the user to align a visible beam using the center Ø1 mm through hole. Once the beam is aligned, the tool can be lifted from the lens holder or lens tube without disturbing the alignment and can later be replaced into approximately the same position.
Resources & Downloads
Drawings And Cad
LH1-AT.PDF(39.6 kB, PDF)
Other
MKS RoHS2-2021 Alignment Targets.pdf(752.8 kB, PDF)
Related Products
Compatible
