Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), M4 Thread, A-LINE

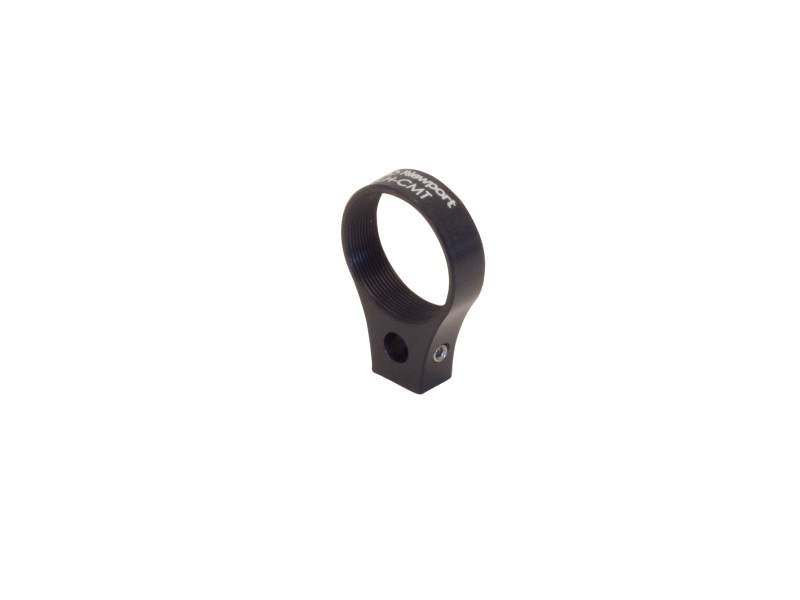

The M-LH-CMT C-Mount Camera Lens holder is a convenient and economical solution for fixed mounting of Camera Lenses with 1.00-32 threads. The holder incorporates an M4 threaded mounting hole for post mounting on both Metric SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Optic Adaptor
Adjustments
Fixed
Optic Diameter
C-Mount

Thread Type
M4
Optic Retaining Thread
1.000‐32

Type
Optic Adaptor
Adjustments
Fixed
Optic Diameter
C-Mount

Thread Type
M4
Optic Retaining Thread
1.000‐32
