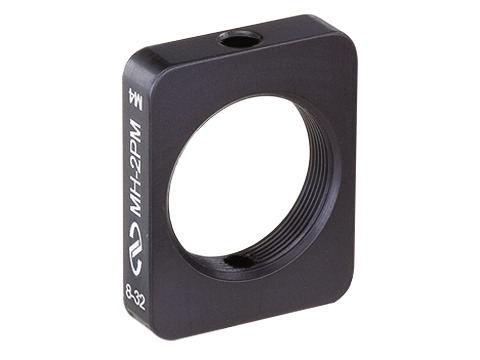

Microscope Objective Holder, RMS-Threaded, 0.625 in. Axis Height

Microscope Objective Lens Mounts And Adapters

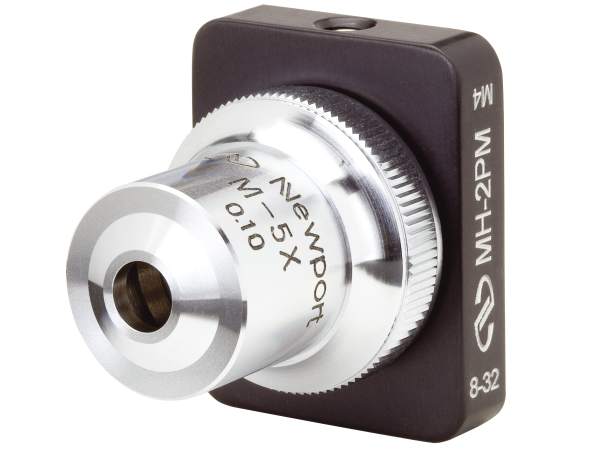

The MH-2PM Fixed Position Microscope Objective Mount accommodates microscope objectives with the standard 0.800-36 RMS thread such as our M or L Series. 8-32 and M4 threads provide for easy post mounting as well as compatibility with our MRL Series mini rails and MT Series compact linear stages.

Specifications

Technical Specs

Type
Objective Lens Mount
Optical Axis Height
15.9 mm

Thread Type
8-32 and M4

Type
Objective Lens Mount
Optical Axis Height
15.9 mm

Thread Type
8-32 and M4

Resources & Downloads

3D Product Models

2D Product Drawings

MH-2PM-249(135.7 kB, PDF)

Other

MH-2PM RoHS Certificate(277.7 kB, PDF)
MH-2PM_RoHS2021.pdf(682.8 kB, PDF)
