Microscope Objective Lens, 5x, 0.10 NA, 25.4 mm Focal Length
Model: M-5X
Product Series Overview

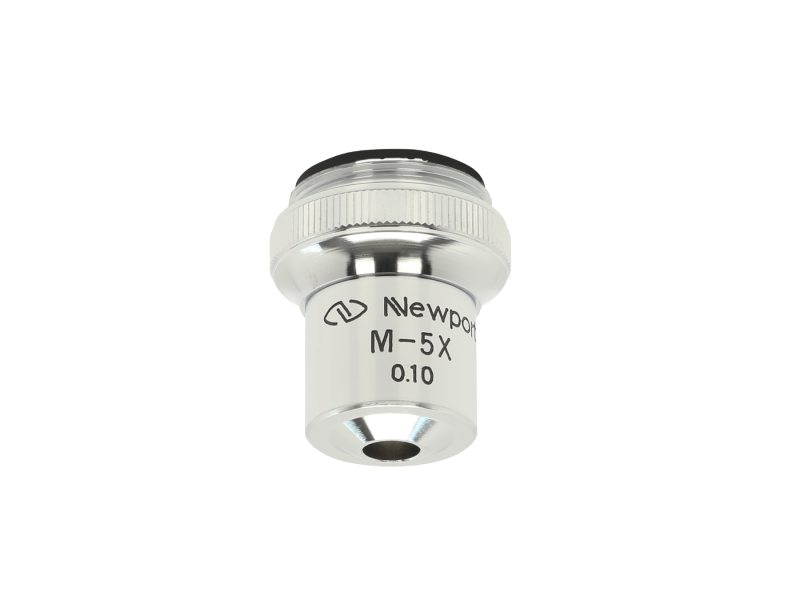

Standard Objective LensesThe M-5X microscope objective has a 5x magnification, 0.10 numerical aperture, 25.4 mm focal length, and 6.0 mm clear aperture. It uses a standard RMS thread, 0.800-36. The objective is corrected for a rear conjugate at 160 mm. The lenses are antireflection coated with MgF2 for the visible spectrum. This M-5x objective is suitable for use with either the Model 900 or 910A spatial filters. M- series microscope objective power is based on a 160 mm tube length. MP = 160 mm/f
Ideal for Spatial Filtering
Our microscope objectives are broadband AR coated and designed for diffraction limited performance across the entire visible spectrum. This allows collimated beams from lasers such as HeNe, Argon, or frequency double Nd:YAG to be focused to a small spot for spatial filtering. In spatial filtering, a laser source is focused to a diffraction limited airy disk spot pattern. A pinhole is placed at the focal plane sized such that only the central lobe of the airy disk may pass through. This removes undesired higher spatial frequencies to produce a clean uniform output beam. Please see our Three-Axis Spatial Filters and our space-saving Compact Five-Axis Spatial Filters.
Resources & Downloads
3D Product Models
2D Product Drawings
M-5x with dimensions.pdf(222.5 kB, PDF)
Other
M-5X RoHS Certificate(265.2 kB, PDF) M-5X_ROHS2-2021.pdf(280 kB, PDF) M-5X_RoHS2021.pdf(685.2 kB, PDF) MgF2 Raw Data.xlsx(63.2 kB, XLSX)
