XY Optic Positioner, Precision, BM Micrometers

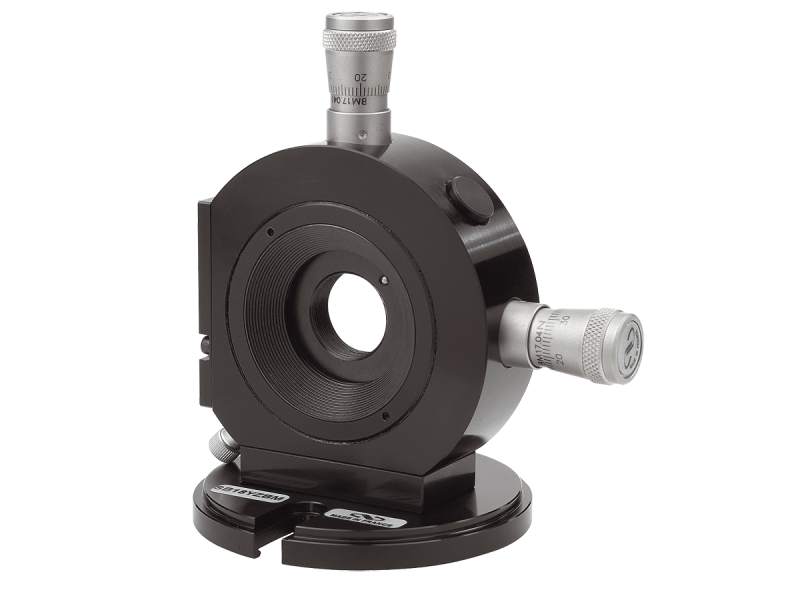

The SB18YZBM Optic Mount precisely positions any optical element in a plane perpendicular to the optical axis, and is a very popular choice for positioning in spatial filters. The mount accepts any M20.25 RMS-threaded pinhole, microscope objective or lens. XY travel is ±2 mm. A BM Micrometer drives deliver 1 µm sensitivity. Mounted on a CN26 carrier, SB18YZ mounts have a 40 mm axis height for compatibility with the X26 component family. For table mounting, SB18YZ mounts include a base plate similar to those found on our SL Series mounts.

Specifications

Technical Specs

Type
Objective Lens Mount
Use
Microscope objectives & pinholes
Adjustments
XY
Adjustment Type
BM Series Micrometers

Travel, Y
±2 mm
Sensitivity
1 µm
Objective Lens Thread
RMS
Thread Type
RMS

Type
Objective Lens Mount
Use
Microscope objectives & pinholes
Adjustments
XY
Adjustment Type
BM Series Micrometers

Travel, Y
±2 mm
Sensitivity
1 µm
Objective Lens Thread
RMS
Thread Type
RMS
