Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics

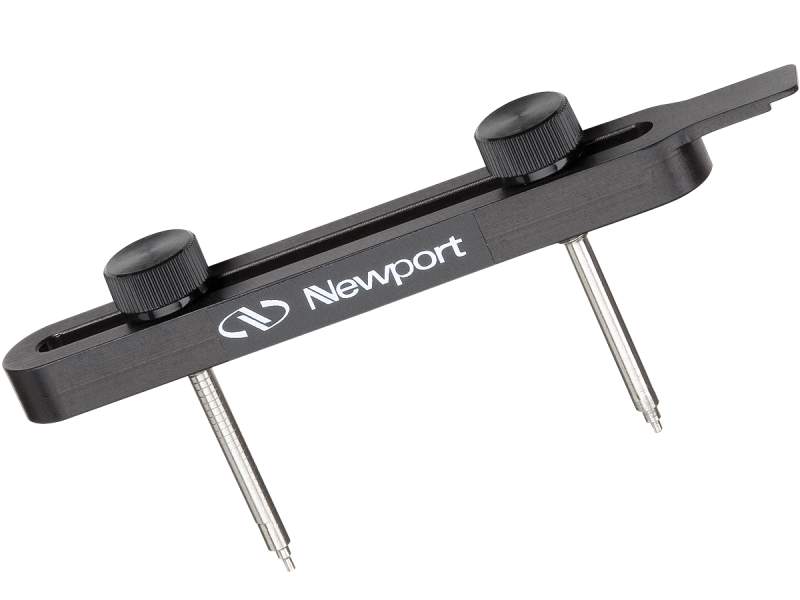

The SW-OM Compact Spanner Wrench is used to adjust retaining rings in most optical systems without interrupting surrounding components. It has been optimized for use with mounts for 6.35 to 50.8 mm diameter optics and will accommodate retaining rings with either holes or slots. For the very smallest retaining rings, the end blade can be used.

Specifications

Technical Specs

Type
Spanner Wrench

Optic Diameter
6.35 to 50.8 mm

Type
Spanner Wrench

Optic Diameter
6.35 to 50.8 mm

Resources & Downloads

3D Product Models

2D Product Drawings

SW-OM DWG-S(117.6 kB, PDF)

Other

SW-OM RoHS Certificate(278.8 kB, PDF)
SW-OM_RoHS2021.pdf(680.7 kB, PDF)
