Objective Lens & Pinhole Precision XY Positioners

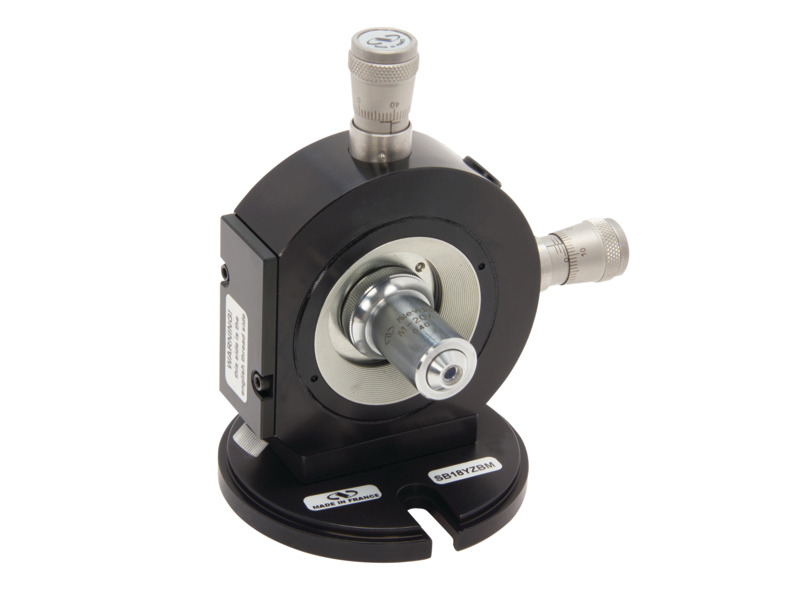

The SB18YZ Optic Mount, with its RMS threading, is ideally suited for precisely positioning any RMS-threaded optical element in a plane perpendicular to the optical axis, and is a very popular choice for positioning in spatial filters. The mount accepts any M20.25/RMS-threaded pinhole, microscope objective or lens.

Ideal for pinhole or objective positioning in spatial filters
RMS mounting threads
Standard differential or locking drives
Compatible with X26 optical rails

See All Features

Description	Compatibility	Price

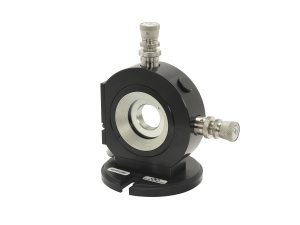

SB18YZBD Objective Lens Precision XY PositionersXY Optic Positioner, Precision, BD Differential Micrometers	UNIVERSAL	$1,492

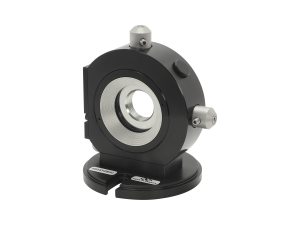

SB18YZBHC Objective Lens Precision XY PositionersXY Optic Positioner, Precision, BHC Lockable Adjustment Screws	UNIVERSAL	$870

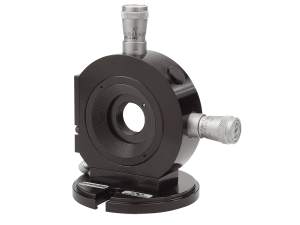

SB18YZBM Objective Lens Precision XY PositionersXY Optic Positioner, Precision, BM Micrometers	UNIVERSAL	$1,088

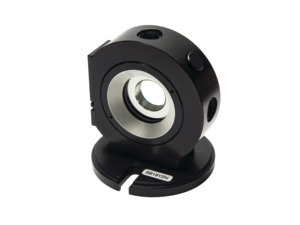

SB18YZN Objective Lens Precision XY PositionersXY Optic Positioner, Precision, Actuators Not Included	UNIVERSAL	$582

Specifications

Features

RMS Mounting Thread

The RMS thread on the SB18YZ conveniently holds RMS-threaded microscope objectives or pinholes.

Ideally Suited for Spatial Filters

A spatial filter can be constructed by the SB18YZ Precision XY Positioner with PNH pinhole, UMR linear stages, X26 series four-sided optical rail, rail carriers and rail mounts.

Choice of Actuators

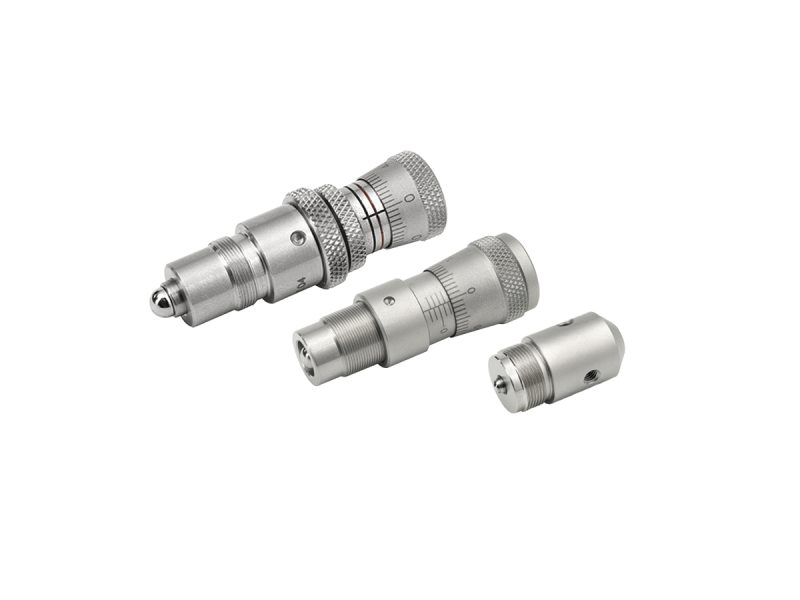

The SB18YZ Optic Mount is available with ±2 mm travel Hex Screws, Micrometers, or Differential Micrometers. BM Micrometer drives deliver 1 µm sensitivity. Short-focal-length pinhole focusing applications benefit from the 0.1 µm sensitivity of BD Differential Micrometers. BHC Lockable Adjustment Screws fix the optic in position to prevent inadvertent misadjustment.

Table or Post Mounting

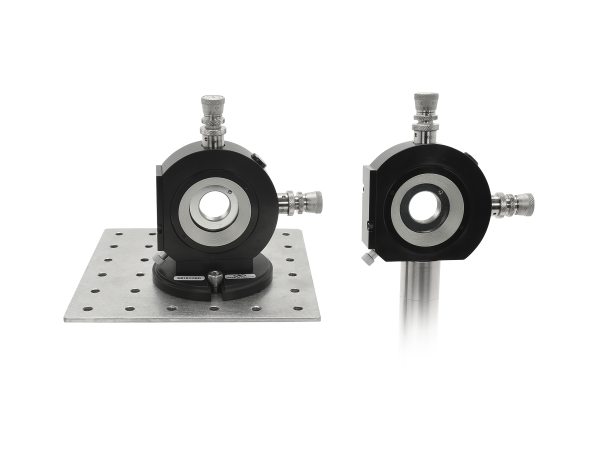

The Objective Lens & Pinhole Precision Positioners can directly be mounted to optical tables using the slotted base, which can be removed if space is limited, or to an optical post. To mount to an optical post, the base and the riser need to be removed to expose a 1/4-20 (M6) threaded hole at the bottom of the mount.

Locking Actuators

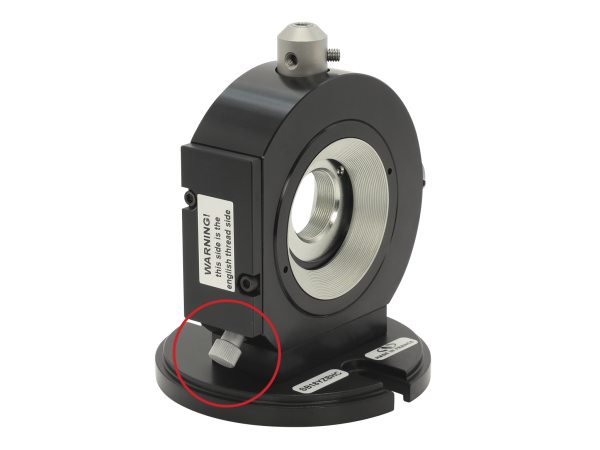

For long-term stability, all Newport’s Objective Lens & Pinhole Precision XY Positioners feature lockable actuators. To lock the actuators, simply tighten the knob at the corner of the mount to prevent unintended adjustments.

Imperial and Metric Mounting Holes

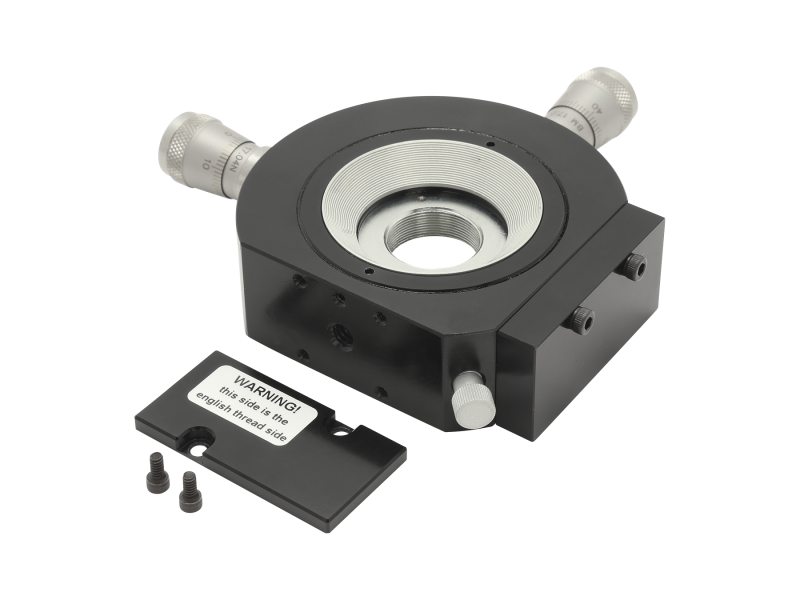

The Objective Lens & Pinhole Precision XY Positioners are compatible with both imperial and metric systems. The bottom of the mount is equipped with a central M6 threaded hole and four M3 threaded holes in 20 mm square. Simply removing the plate on the side of the mount will grant access to 1/4-20 and 4-40 threaded holes in similar pattern.
