RMS Threaded Platinum Iridium Pinholes

These pinholes are made from ultra-thin platinum iridium are available either mounted or unmounted. The mounted versions have a 20.25 RMS male thread to fit into the The SB18YZ Pinhole Positioner. Unmounted versions are available as replacements.

Ultra-thin Platinum Iridium pinholes
Mounted for use with the SB18YZ objective positioners
20.25 RMS male thread

See All Features

Description	Compatibility	Aperture Diameter	Aperture Diameter Tolerance	Price
PNH-5Pinhole, Platinum Iridium, 5 µm, RMS Thread	UNIVERSAL	5 µm	±1 µm	$318
PNH-10Pinhole, Platinum Iridium, 10 µm, RMS Thread	UNIVERSAL	10 µm	±1 µm	$317
PNH-15Pinhole, Platinum Iridium, 15 µm, RMS Thread	UNIVERSAL	15 µm	±2 µm	$258
PNH-20Pinhole, Platinum Iridium, 20 µm, RMS Thread	UNIVERSAL	20 µm	±2 µm	$232
PNH-30Pinhole, Platinum Iridium, 30 µm, RMS Thread	UNIVERSAL	30 µm	±2 µm	$190
PNH-50Pinhole, Platinum Iridium, 50 µm, RMS Thread	UNIVERSAL	50 µm	±2 µm	$190
PNH-80Pinhole, Platinum Iridium, 80 µm, RMS Thread	UNIVERSAL	80 µm	±5 µm	$165
PNH-100Pinhole, Platinum Iridium, 100 µm, RMS Thread	UNIVERSAL	100 µm	±5 µm	$167
PNH-150Pinhole, Platinum Iridium, 150 µm, RMS Thread	UNIVERSAL	150 µm	±5 µm	$130
PNH-200Pinhole, Platinum Iridium, 200 µm, RMS Thread	UNIVERSAL	200 µm	±5 µm	$130

Specifications

Type
Mounted Pinhole
Thread Type
RMS
Material
Platinum Iridium

Diameter
2.0 mm
Diameter Tolerance
+0/-0.02 mm
Thickness
0.6 mm

Features

Compatible with SB18YZ Pinhole Positioners

These Platinum Iridium pinholes feature a 20.25 RMS male threaded housing for use with our SB18YZ Series objective and pinhole positioners.

Accessories

Compatible Pinhole Positioners

Description	Compatibility	Price

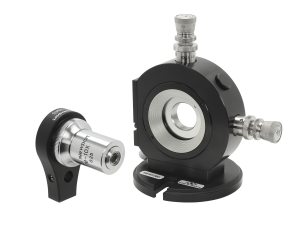

SB18YZBMXY Optic Positioner, Precision, BM Micrometers	UNIVERSAL	$1,088
SB18YZBDXY Optic Positioner, Precision, BD Differential Micrometers	UNIVERSAL	$1,492
SB18YZBHCXY Optic Positioner, Precision, BHC Lockable Adjustment Screws	UNIVERSAL	$870
SB18YZNXY Optic Positioner, Precision, Actuators Not Included	UNIVERSAL	$582
