X26 Optical Rail Carriers
X26 Optical Rail Carriers

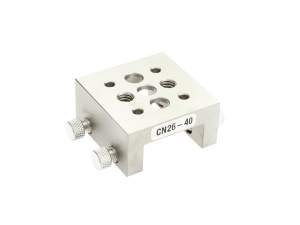

Our X26 optical rail carriers can easily be fixed to any of the four sides of the symmetrical cross-shaped rail providing four parallel work surfaces.
- Mount to all four sides of X26 optical rails
- Dovetail for fast mounting and locating
- Compatible with a wide range of Newport mounts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CN26-12 26 mm Optical Rail CarriersOptical Rail Carrier, 12 mm Length, 1/4-20 Thread, X26 Series | |||||
 | CN26-40 26 mm Optical Rail CarriersOptical Rail Carrier, 40 mm Length, 1/4-20 Thread, X26 Series | |||||

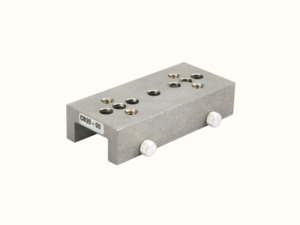

 | CN26-90 26 mm Optical Rail CarriersOptical Rail Carrier, 90 mm Length, 1/4-20 Thread, X26 Series | |||||

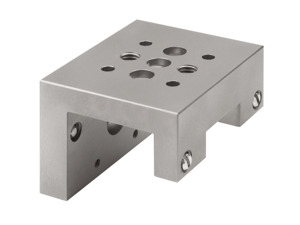

 | CN26C 26 mm Optical Rail Carriers90 Degree Rail Carrier, 50 mm Length, 1/4-20 Thread, X26 Series | |||||

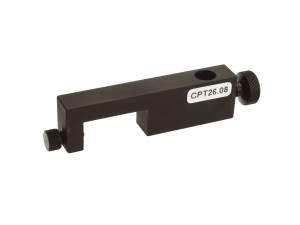

 | CPT26.08 26 mm Optical Rail CarriersOptical Post Carrier, TSP Series Post, X26 Series Rail | |||||

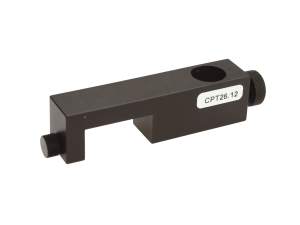

 | CPT26.12 26 mm Optical Rail CarriersOptical Post Carrier, SP Series Post, X26 Series Rail | |||||

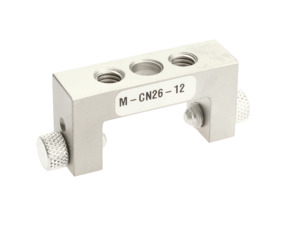

 | M-CN26-12 26 mm Optical Rail CarriersOptical Rail Carrier, 12 mm Length, M6 Thread, X26 Series | |||||
 | M-CN26-140 26 mm Optical Rail CarriersOptical Rail Carrier, 140 mm Length, M6 Thread, X26 Series | |||||

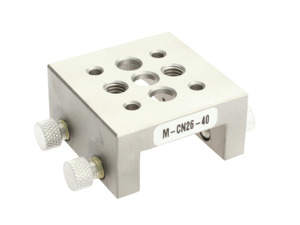

 | M-CN26-40 26 mm Optical Rail CarriersOptical Rail Carrier, 40 mm Length, M6 Thread, X26 Series | |||||
| M-CN26-90 26 mm Optical Rail CarriersOptical Rail Carrier, 90 mm Length, M6 Thread, X26 Series |
Features
Compatible Mounts Have Common 40 mm Optical Axis Height
Compatible optical mounts, which include SL Series 1.0 in. Gimbal Optical Mounts, SB18YZ Series Lens Positioners, X26 Series Optic and Lens Barrel Mounts, and are provided a common optical axis height of 40 mm above the rail surface. Please note that the slotted base and riser block of the gimbal mounts and lens positioner need to be removed.
Dovetail Design

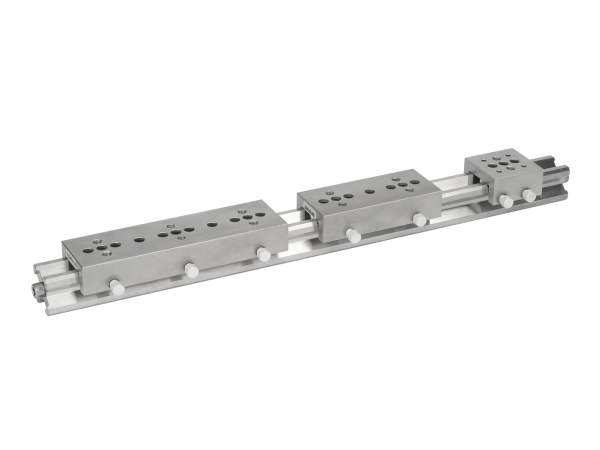

Dovetail construction enables fast, easy mounting and secure clamping of carriers at any point along the rail without removing other components. Shown is CN26-40, CN26-90 and CN26-140 rail carriers mounted to an X26-384 optical rail.
