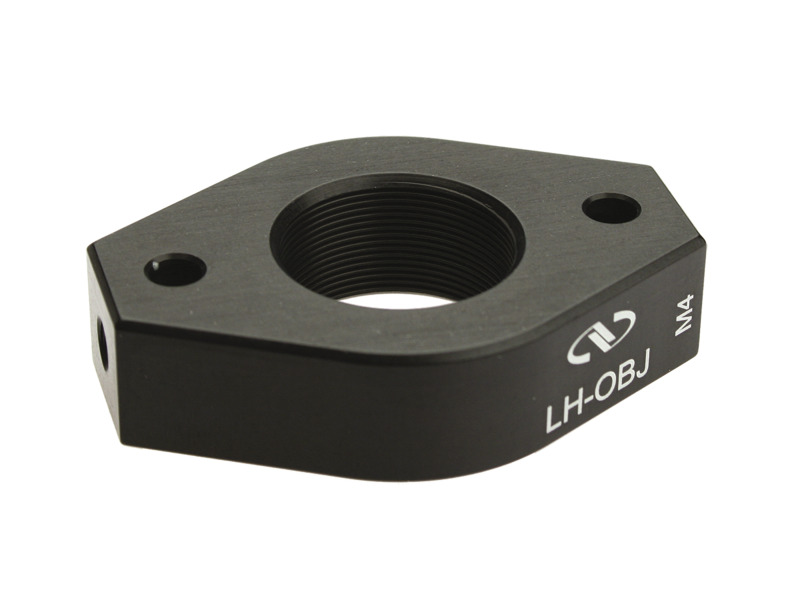

Microscope Objective Holder, RMS-Threaded, 1.0 in. Axis Height

Microscope Objective Lens Mounts And Adapters

The LH-OBJ Microscope Objective Mount is a convenient and economical solution for fixed mounting of microscope objectives with RMS thread. The holder incorporates 8-32 and M4 threaded mounting holes for post mounting on both English and Metric SP and MSP Series posts.

Specifications

Technical Specs

Type
Objective Lens Mount
Optical Axis Height
25.4 mm

Thread Type
8-32 and M4

Type
Objective Lens Mount
Optical Axis Height
25.4 mm

Thread Type
8-32 and M4

Resources & Downloads

3D Product Models

2D Product Drawings

LH-OBJ-301(93.1 kB, PDF)

Other

LH-OBJ RoHS Certificate(279.1 kB, PDF)
LH-OBJ_RoHS2021.pdf(681.4 kB, PDF)
