Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter
Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter
Model: MH-2P
Product Series Overview

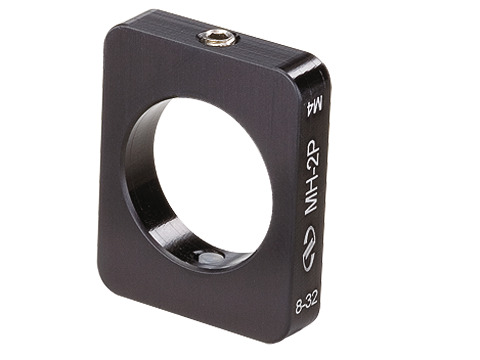

0.75 Inch Fixed Lens MountThe MH-2P Fixed Position Lens Mount securely holds 0.75 in. (19.1 mm) optics and is ideal for use with post systems as well as our MRL Series mini rails and MT Series compact linear stages. The MH-2P accommodates 0.75 in. (19.1 mm) optics directly or 0.5 in. (12.7 mm) optics using an A-75-50 adaptor. When combined with MLH-0.5 optic adapter, 0.5 in. polarizers can be integrated into your optical system. The MH-2P is designed for direct attachment to MCF rail carriers with an adaptor washer, and using one half of an MT-AB2 bracket as an adaptor plate, on MT Series linear stages.
Resources & Downloads
Drawings And Cad
MH-2P-248(138 kB, PDF)
Other
MH-2P RoHS Certificate(277.7 kB, PDF) MH-2P_RoHS2021.pdf(685.6 kB, PDF)
