A-Line™ Microscope Objective and C-Mount Lens Mounts
A-Line™ Microscope Objective and C-Mount Lens Mounts
The LH-RMS Microscope Objective Mount is a convenient and economical solution for fixed mounting of microscope objectives with RMS thread. The LH-CMT C-Mount Camera Lens holder is designed to hold camera lenses with 1.00-32 threads. The front of the mounts features a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts. They also incorporate an 8-32 (M4) threaded mounting hole at the bottom for post mounting.
- Compatible with A-Line optical system
- RMS thread for microscope objective
- C-Mount Camera Lens holder
- 8-32 or M4 threads for post mounting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LH-CMT A-Line™ Objective and C-Mount Lens Mounts Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 Thread, A-LINE | |||||
 | LH-RMS A-Line™ Objective and C-Mount Lens Mounts Microscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32 | |||||
| M-LH-CMT A-Line™ Objective and C-Mount Lens Mounts Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), M4 Thread, A-LINE | |||||
| M-LH-RMS A-Line™ Objective and C-Mount Lens Mounts Microscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, M4 |
Features

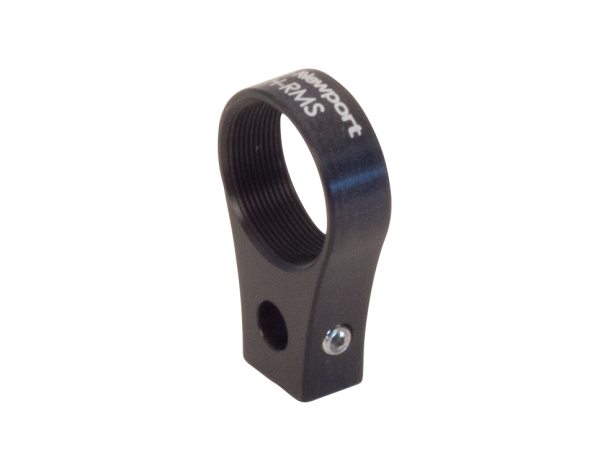

A-Line Microscope Objective Mount
The LH-RMS (M-LH-RMS) microscope objective mount is with 0.800-36 thread and compatible with microscope objectives. The mount could be post mounted or work with LH-GR series guide rods for fast alignment of several A-Line lens mounts.

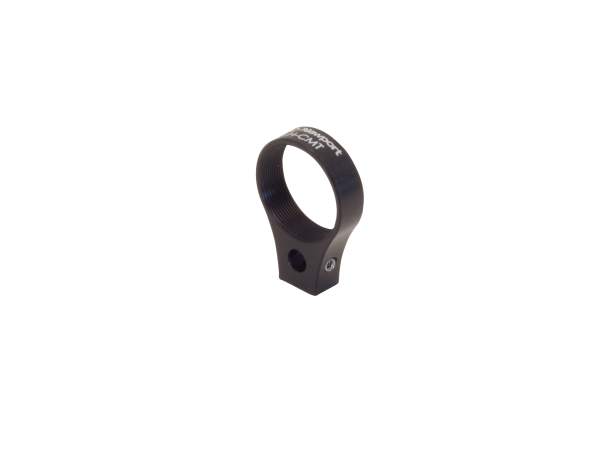

A-Line C-Mount Camera Lens Holder
The LH-CMT(M-LH-CMT) lens holder provides convenient and affordable solution for fixed mounting of camera lenses with 1.00-32 threads. The lens holder could be post mounted or work with LH-GR series guide rods for fast alignment of several A-Line lens mounts.
