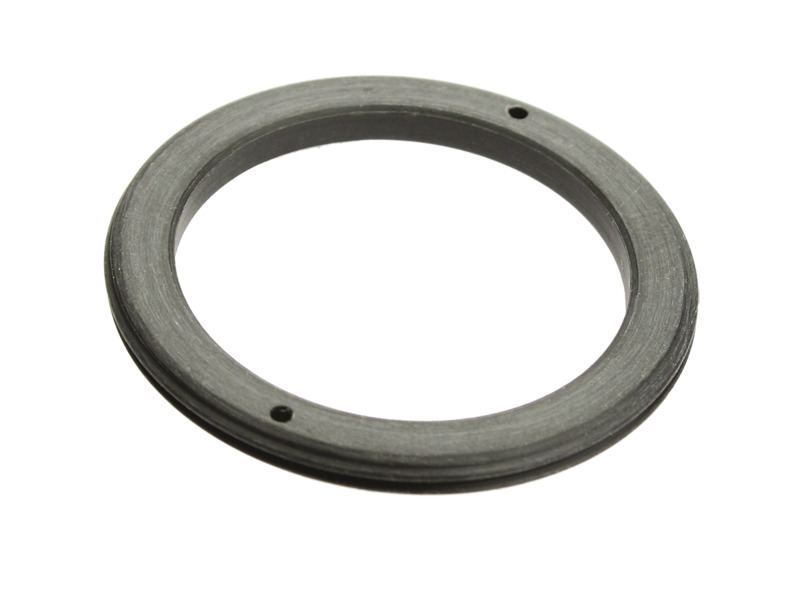

Retaining Ring, 30.0 mm ID, 1.563-20 Thread

Adaptors and Retaining Rings

The LP-2-RR Retaining Ring is for use with the LPLH-1.5T, LH-1.5, & LH2-1.5R. It has a 30 mm inner diameter and 1.563-20 thread.

Specifications

Technical Specs

Type
Retaining Ring
Thread Type
1.563-20

Inside Diameter
30.0 mm

Type
Retaining Ring
Thread Type
1.563-20

Inside Diameter
30.0 mm

Resources & Downloads

3D Product Models

2D Product Drawings

retaining rings dwg.pdf(93.7 kB, PDF)

Other

LP-2-RR RoHS Certificate(279.2 kB, PDF)
LP-2-RR_RoHS2021.pdf(688.3 kB, PDF)
