Sorry, this product is no longer offered for sale. It was discontinued on May 2, 2016

Laser Diode Module, 2330 nm, 2.5 mW, CW, Elliptical Beam

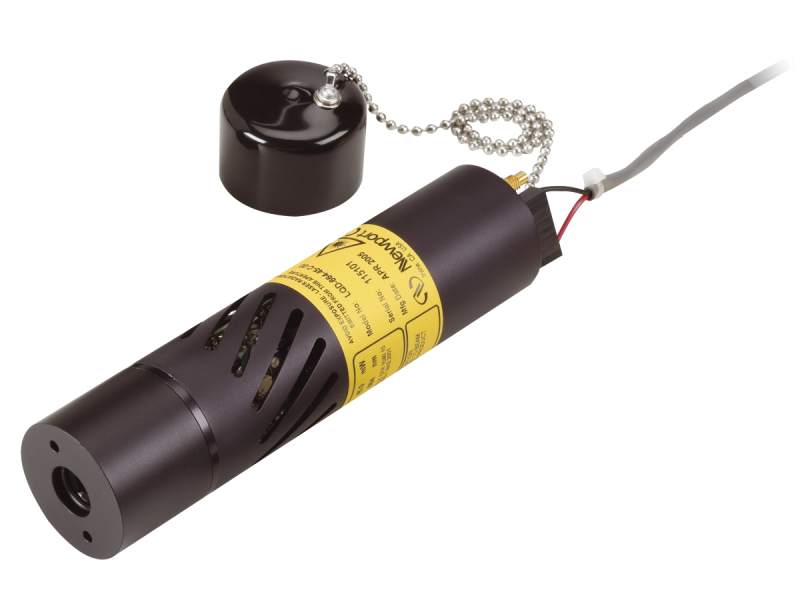

laser diode module shown with protective cap

The LQC2330-2.5E CW Laser Diode Module is an economical choice. It includes the diode and collimating optics in a single case. This Fabry-Perot (FP) 2330 nm Laser Diode Module with a 2.5 mW CW elliptical beam comes in a self contained module. It requires a 5 VDC external power supply. An LPMS-5-110 or LPMS-5-220 Series Power Supply (not included) must be used with this LD module to meet CDRH requirements by providing an interlock input, key enable switch, delayed start-up, and laser active indicator. Warranty is not applicable when a custom power supply is used to drive the module.

Specifications

Technical Specs

Type
CW Laser Diode
Center Wavelength
2330 nm
Center Wavelength Tolerance
±10 nm
Output Power
2.5 mW
Power Stability
<1% (8 hr.)
Beam Divergence Full Angle
<1.5 x 0.7 mrad

Size
Ø38.1 x 157.5 mm
Noise
005
Applications
Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Tissue Fluorescence
Power Requirements
4.8 to 12 VDC
Operating Temperature
0 to 40 °C

Type
CW Laser Diode
Center Wavelength
2330 nm
Center Wavelength Tolerance
±10 nm
Output Power
2.5 mW
Power Stability
<1% (8 hr.)
Beam Divergence Full Angle
<1.5 x 0.7 mrad

Size
Ø38.1 x 157.5 mm
Noise
005
Applications
Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Tissue Fluorescence
Power Requirements
4.8 to 12 VDC
Operating Temperature
0 to 40 °C

Resources & Downloads

3D Product Models

2D Product Drawings

LQx Series Laser Diode Modules User's Manual(744.2 kB, PDF)
