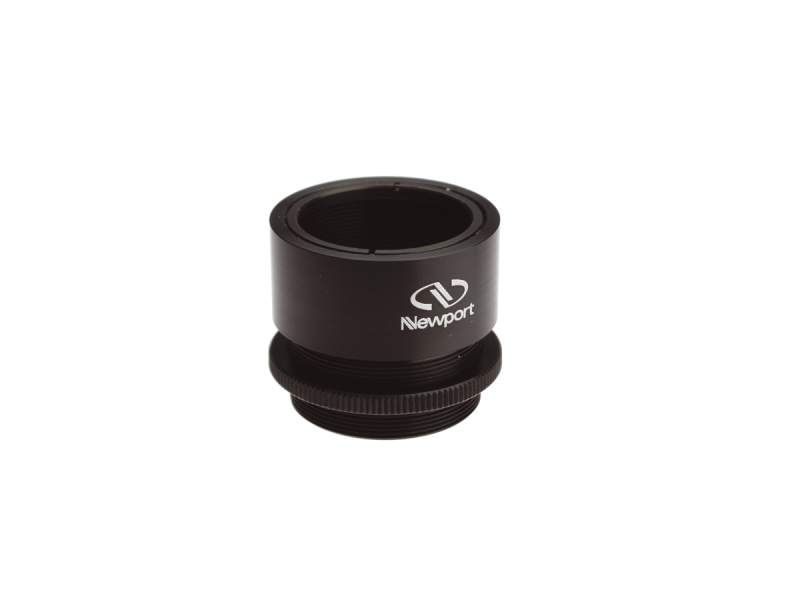

Focusing Lens Tube, 1 inch diameter lenses

The LT10-F Focusing Tube allows axial translation of one group of lenses relative to another. The focusing tube is simply a lens tube with a longer external thread and a locking nut. Provided in 1 inch diameter, the focusing tube screws into the internal threads of a standard lens tube and is locked in place with the lock nut. The maximum focusing range is 0.39 inch. A lens retaining ring is also included with each focusing tube.

Specifications

Technical Specs

Type
Lens Positioner
Optic Diameter
25.4 mm
Use
1.0 in. Lens Tubes
Adjustments
Z
Travel, Z
0.39 in.

Thread Type
1.035-40
Length
26.7 mm

Type
Lens Positioner
Optic Diameter
25.4 mm
Use
1.0 in. Lens Tubes
Adjustments
Z
Travel, Z
0.39 in.

Thread Type
1.035-40
Length
26.7 mm

Resources & Downloads

Other

LT10-F RoHS Certificate(278.8 kB, PDF)
LT10-F_RoHS2021.pdf(682.7 kB, PDF)

Drawings And Cad

LT-XX-F DWG.pdf(187.2 kB, PDF)
