Step Adaptor, 1.0 to 2.0 in. Lens Tubes,1.035-40 to 2.035-40 Thread
Step Adaptor, 1.0 to 2.0 in. Lens Tubes,1.035-40 to 2.035-40 Thread
Model: LT-S-10E20N
Product Series Overview

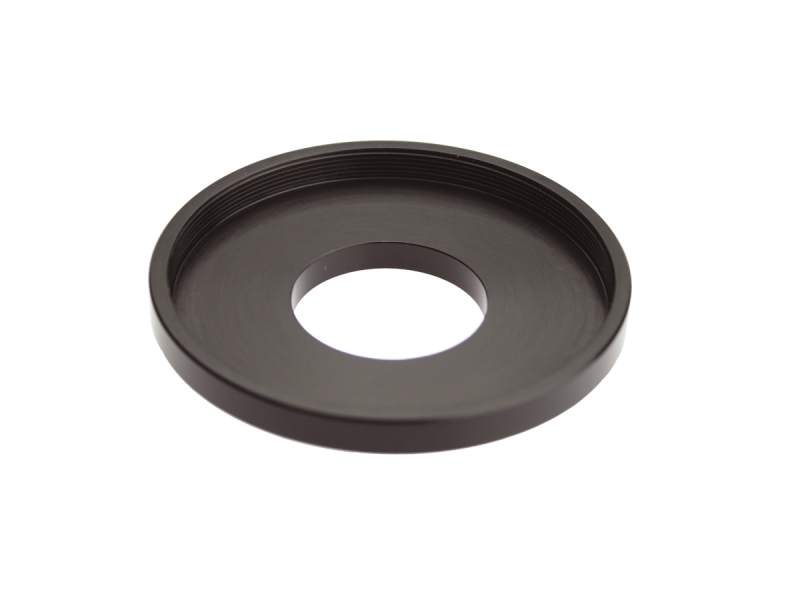

Lens Tube AdaptersThe LT-S-10E20N Lens Tube Step Adaptor allows a 1 inch LT Series lens tube to be coupled to a 2 inch LT Series lens tube. The LT-S-10E20N step adaptor allows the internal thread of a 1 inch lens tube to be coupled to the external thread of a 2 inch lens tube. The LT-S-05E10N step adaptor is also available which allows the internal thread of a 1/2 inch lens tube to be coupled to the external thread of a 1 inch lens tube. These two Step Adaptors can be connected together to provide a direct connection between the internal thread of a 1/2 inch lens tube and the external thread of a 2 inch lens tube.
Resources & Downloads
Drawings And Cad
LT-S-XXEXXN_DWG(95.6 kB, PDF)
Other
LT-S-10E20N_RoHS2021.pdf(683 kB, PDF)
