Lens Washer, 2.0 in. Diameter, 10 mm Thick, Aluminum, 6 Pack
Lens Washer, 2.0 in. Diameter, 10 mm Thick, Aluminum, 6 Pack
Model: LT20-SP10-PK
Product Series Overview

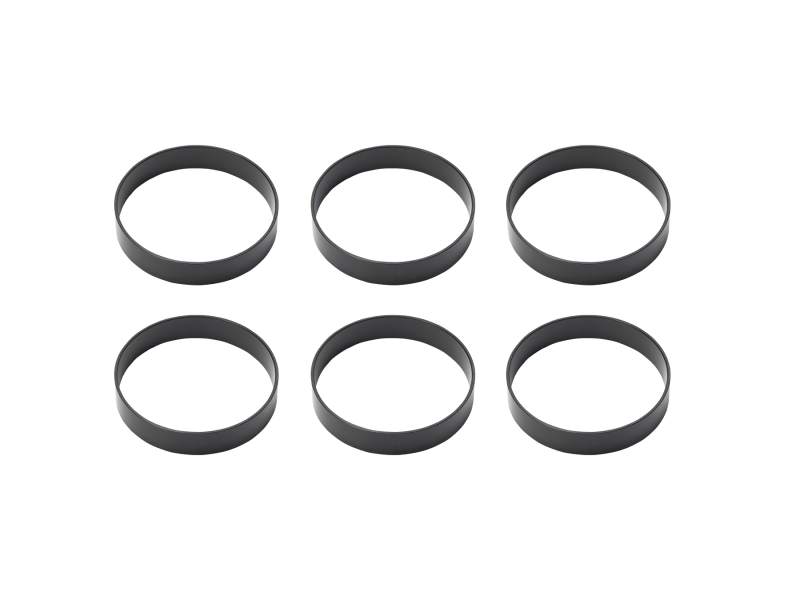

Lens Tube Spacers and WashersLT20-SP10-PK lens Tube Spacer Set is a set of six black anodized aluminum rings sized to fit into LT20 and LH-2A 2 in. lens mounts. Much more efficient and effective than using retaining rings for spacing lenses, they are ideally suited for making fixed multi-element lens assemblies like collimators and beam expanders. These spacers are 10 mm thick and have a thin-wall design to maintain a 90% clear aperture. LT20-SP series spacers are also avaialble in six additional thicknesses from 0.5 to 25 mm. Note that the LT20-SP05-PK, 0.5-mm thick spacers are made from black Delrin (acetal plastic) and can also be used as protective washers.
Resources & Downloads
Drawings And Cad
LT-SP.pdf(19.4 kB, PDF)
Other
LT20-SP10-PK RoHS Certificate(278.7 kB, PDF) LT20-SP10-PK_RoHS2021.pdf(683.4 kB, PDF)
