Post C-Clamp, 25.4 mm Diameter Posts, M4 Thread

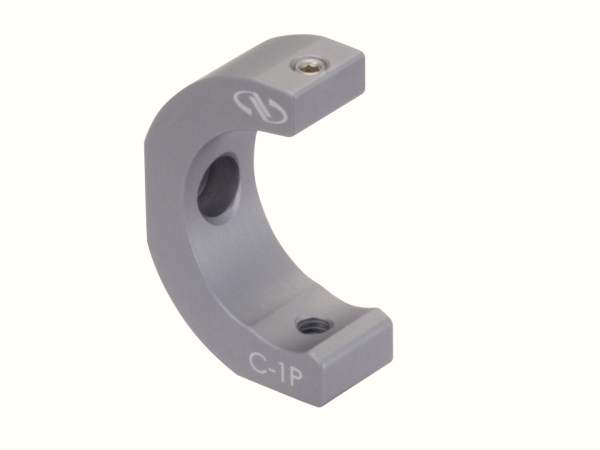

The M-C-1P C-Clamp is a multifunction post clamp which can interface optic mounts to a 25.4 mm diameter optical post. The open side of the C-clamp means it can be directly attached to a post without having to slide it on from the end of the post. Once installed, the M-C-1P has two mounting points located 90° apart for the mounting of components. One of the mounting points has a threaded M4 hole while the other has a counterbored through hole. This C-Clamp can also be used as a post collar when using the Q-TMS series post holders or can be used to securely post-mount cylindrical optical components like mirrors.

Specifications

Technical Specs

Type
Post C-Clamp
Height
12.7 mm

Material
Aluminum
Inside Diameter
25.4 mm

Type
Post C-Clamp
Height
12.7 mm

Material
Aluminum
Inside Diameter
25.4 mm

Resources & Downloads

3D Product Models

2D Product Drawings

C-1P-328(136.1 kB, PDF)

Other

M-C-1P RoHS Certificate(278.5 kB, PDF)
M-C-1P_RoHS2021.pdf(680.7 kB, PDF)
