Optical Rail Carrier, X48, 80 mm Length, M3, M4, and M6 Thread
Optical Rail Carrier, X48, 80 mm Length, M3, M4, and M6 Thread
Model: M-CXL48-80
Product Series Overview

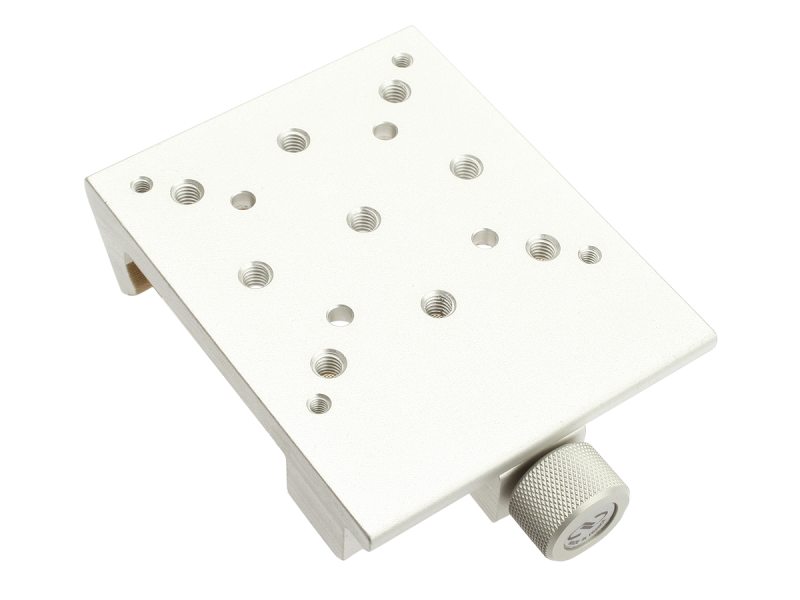

48 mm Aluminum Four-Sided Optical RailsThe M-CXL48-80 Rail Carrier enables fast, easy mounting and secure clamping of components at any point along the X48 rail. The M-CXL48-80 Carrier is specially designed to support positioners with the 80 mm module size. Knurled knobs are used to securely clamp the carriers to the rail. A unique clamp design eliminates contact between the screw shaft and the rail for smoother sliding, more stable positioning, and prevention of possible rail damage from over-tightening. M6 and M4 holes.
